45° Elbow BSP Thread Adjustable Stud Ends With O-Ring Sealing

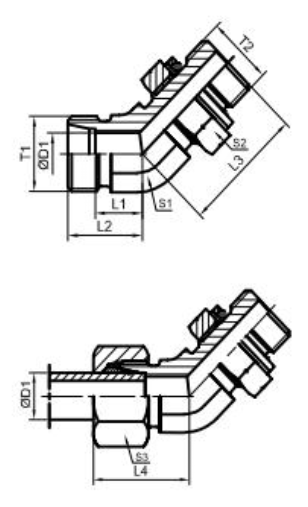

| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | |||||||
| T1 | T2 | D1 | L1 | L2 | L3 | L4 | 1 | S2 | S3 | g/pc | (Bar)| | ||
| 10G4-12-020G 1CG4-14-040G 10G4-16-060G 1CG4-18-060G 10G4-22-080G 1CG4-26-080G 10G4-30-120G 1CG4-36-160G 1CG4-45-200G 10G4-52-240G 1DG4-14-040G 1DG4-16-040G 1DG4-18-06OG 1DG4-20-06OG 1DG4-22-080G 1DG4-24-080G 1DG4-30-120G 1DG4-36-160G 1DG4-42-200G |
M12x1.5 M14x1.5 M16x1.5 M18x1.5 M22x1.5 M26x1.5 M30x2 M36x2 M45x2 M52x2 M14x1.5 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M30x2 M36x2 M42x2 |
G1/8″x28 G1/4″x19 G3/8″x19 G3/8″x19 G1/2″x14 G1/2″x14 G3/4″x14 G1″x11 G1.1/4″x11 G1.1/2″x11 G1/4″x19 G1/4″x19 G3/8″x19 G3/8″x19 G1/2″x14 G1/2″x14 G3/4″x14 G1″x11 G1.1/4″x11 |
6 8 10 12 15 18 22 28 35 42 6 8 10 12 14 16 20 25 30 |
9 12 15 14 17 17 19 23 27 26 9 12 13 17 22 16 16 19 24 |
16 19 22 21 24 24.5 26.5 30.5 37.5 37 16 19 20.5 24.5 30 24.5 26.5 31 37.5 |
28 29 30 37 39 45 50 52 54 54 28 32 34 34 40 44 46 51 53 |
24 27 30 28 32 33 35 40 48 49 24 27 29 33 36 34 38 43 50 |
14 14 16 19 22 27 30 36 50 50 14 19 19 19 22 27 27 36 50 |
14 19 22 22 27 27 36 41 50 55 19 19 22 22 27 27 36 41 50 |
14 17 22 22 27 32 36 41 50 60 17 19 22 24 27 30 36 46 50 |
30 50 81 85 150 180 276 453 680 888 57 67 92 100 153 163 284 475 577 |
315 315 315 250 250 250 160 160 160 160 315 315 250 250 250 250 250 250 160 |
L L L L L L L L L L S S S S S S S S S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix“RN”after our ,for example 1DG4-20-06OG/RN: with retainer ring please insert suffix “DQ”after our ,for example 1DG4-20-06oGDQ
