90° Elbow BSPT Male
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | |||||||

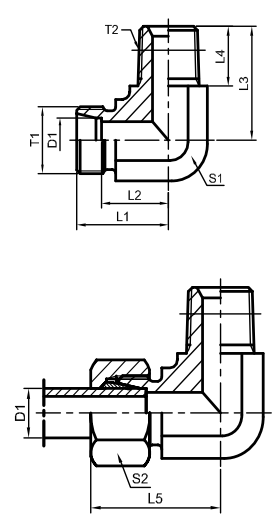

| T1 | T2 | D1 | L1 | L2 | L3 | L4 | L5 | 1 | S2 | g/pc | (bar) | ||
| 1CT9-12-02SP 1CT9-12-04SP 1CT9-14-04SP 1CT9-14-02SP 1CT9-14-06SP 1CT9-16-04SP 1CT9-16-06SP 1CT9-18-06SP 1CT9-18-04SP 1CT9-18-08SP 1CT9-22-08SP 1CT9-26-08SP 1DT9-14-04SP 1DT9-14-06SP 1DT9-16-04SP 1DT9-16-06SP 1DT9-18-06SP |1DT9-18-04SP 1DT9-18-08SP 1DT9-20-06SP 1DT9-20-08SP 1DT9-22-08SP 1DT9-24-08SP |
M12x1.5 M12x1.5 M14x1.5 M14x1.5 M14x1.5 M16x1.5 M16x1.5 M18x1.5 M18x1.5 M18x1.5 M22x1.5 M26x1.5 M14x1.5 M14x1.5 M16x1.5 M16x1.5 M18x1.5 M18x1.5 M18x1.5 M20x1.5 M20x1.5 M22x1.5 M24x1.5 |
R1/8″x28 R1/4″x19 R1/4″x19 R1/8″x28 R3/8″x19 R1/4″x19 R3/8″x19 R3/8″x19 R1/4″x19 R1/2″x14 R1/2″x14 R1/2″x14 R1/4″x19 R3/8″x19 R1/4″x19 R3/8″x19 R3/8″x19 R1/4″x19 R1/2″x14 R3/8″x19 R1/2″x14 R1/2″x14 R1/2″x14 |
6 6 8 8 8 10 10 12 12 12 15 18 6 6 8 8 10 10 10 12 12 14 16 |
19 21 21 21 24 22 24 24 24 28 28 31 23 25 24 25 25 25 30 29 30 30 33 |
12 14 14 14 17 15 17 17 17 21 21 23.5 16 18 17 18 17.5 17.5 22.5 21.5 22.5 22 24.5 |
20 26 26 26 28 27 28 28 27 34 34 36 26 20 27 28 28 28 32 28 32 32 32 |
9.5 12 14 9.5 14 14 14 14 14 14 14 17 14 12 14 12 14 14 14 14 14 14 17 |
27 29 29 29 32 30 32 32 32 36 36 40 31 33 32 33 34 34 39 38 39 40 43 |
12 12 14 14 19 17 19 19 19 19 22 27 14 19 17 19 19 19 22 19 24 22 24 |
14 14 17 17 17 19 19 22 22 22 27 32 17 17 19 19 22 22 22 24 24 27 30 |
30 47 46 49 94 61 87 88 80 89 94 141 56 61 73 63 104 59 98 126 97 101 150 |
315 315 315 315 315 315 315 315 315 315 315 315 400 400 400 400 400 400 400 400 400 400 400 |
L L L L L L L L L L L L S S S S S S S S S S S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix”RN” after our ,for example 1CT-30-12SP/RN.
