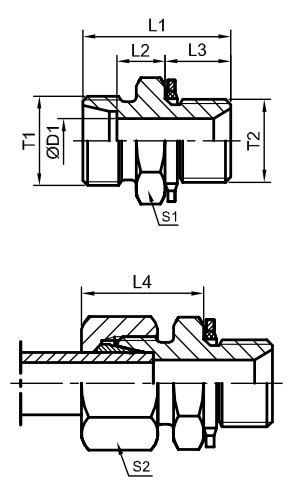

Metric Male 60°Seat Sealing or Bonded Seal Stud Ends
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | ||||||
| T1 | T2 | D1 | L1 | L2 | L3 | L4 | 1 | S2 | g/pc | (bar) | ||
| 1CM-12-10 1CM-14-12 1CM-14-18 1CM-16-14 1CM-16 1CM-16-18 1CM-16-22 1CM-18-14 1CM-18-16 1CM-18 1CM-18-22 1CM-22-16 1CM-22-18 1CM-22 1CM-26-18 1CM-26-22 1CM-30-22 1CM-30-26 1CM-30-27 1CM-36-33 1CM-45-42 1CM-52-48 1DM-14-12 1DM-16-14 1DM-18-16 1DM-20-18 1DM-20-22 1DM-22-20 1DM-24-18 1DM-24-22 1DM-30-27 1DM-36-33 1DM-42 1DM-52-48 |
M12 1.5 M14 1.5 M14 1.5 M16x1.5 M16x1.5 M16x1.5 M16 1.5 M18 1.5 M18 1.5 M18 1.5 M18x1.5 M22 1.5 M22 1.5 M22 1.5 M26x1.5 M26 1.5 M30 2 M30 2 M30 2 M36x2 M45 2 M52 2 M14 1.5 M16 1.5 M18 1.5 M20 1.5 M20x1.5 M22 1.5 M24 1.5 M24 1.5 M30 2 M36 2 M42 2 M52 2 |
M10x1 M12 1.5 M18 1.5 M14 1.5 M16 1.5 |M18x1.5 M22 1.5 M14 1.5 M16 1.5 M18 1.5 M22 1.5 M16 1.5 M18 1.5 M22 1.5 |M18x1.5 M22 1.5 M22 1.5 M26x1.5 M27 2 M33 2 M42 2 M48 2 M12 1.5 M14 1.5 M16 1.5 M18 1.5 M22 1.5 M20x1.5 M18 1.5 M22 1.5 M27 2 M33 2 M42 2 M48 2 |
6 8 8 10 10 10 10 12 12 12 12 15 15 15 18 18 22 22 22 28 35 42 6 8 10 12 12 14 16 16 20 25 30 38 |
23.5 29 30.5 30 31.5 31.5 35 30 31.5 31.5 35 32 32.5 36 33.5 36 38 40 42 43 48 52 32 34 34.5 36.5 39 41 38.5 41 47 53 57 64 |
8.5 10 11.5 11 12.5 12.5 14 11 12.5 12.5 14 13 13.5 15 14 14.5 16.5 16.5 18.5 17.5 17.5 19 13 15 15 17 17.5 19 18 18.5 20.5 23 23.5 26 |
8 10 12 11 12 12 14 11 12 12 14 12 12 14 12 14 14 16 16 18 20 22 10 11 12 12 14 14 12 14 16 18 20 22 |
23 25 26 26 24 27 29 26 27 27 29 28 29 30 30 31 33 33 35 34 39 42 28 30 31 33 34 37 36 37 42 47 50 57 |
14 17 24 19 22 24 27 19 22 24 27 24 24 27 27 27 32 32 32 41 50 55 17 19 22 24 27 27 27 27 32 41 50 55 |
14 17 17 19 19 19 19 22 22 22 22 27 27 27 32 32 36 36 36 41 50 60 17 19 22 24 24 27 30 30 36 46 50 60 |
13 22 23 29 39 49 79 30 39 46 73 50 63 75 67 72 94 100 164 275 350 355 41 53 59 70 100 96 86 93 147 260 415 560 |
500 500 500 500 420 400 400 400 400 400 400 400 400 400 400 400 250 250 250 250 250 250 800 800 800 630 630 630 630 800 420 420 420 420 |
L L L L L L L L L L L L L L L L L L L L L L S S S S S S S S S S S S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix”RN”after our ,for example 1CM-30-27/RN.
