90° Metric Male Bite Type /SAE Flange 6000 PSI

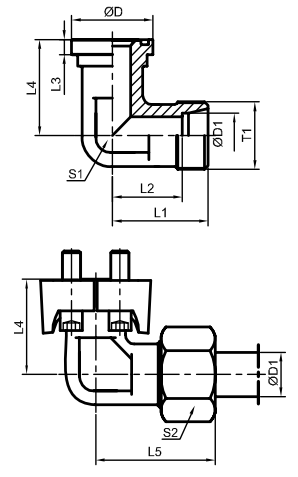

| PART NO. | THREAD | TUBE O.D | DIMENSIONS | BOLT | WEIGHT | WORKING PRESSURE | SERIES | |||||||
| T1 | D1 | D | L1 | L2 | L3 | L4 | L5 | 1 | S2 | g/pc | (bar) | |||
| 1DFS9-20-08 1DFS9-22-08 1DFS9-24-08 1DFS9-24-12 1DFS9-30-12 1DFS9-36-12 1DFS9-30-16 1DFS9-36-16 1DFS9-42-16 1DFS9-36-20 1DFS9-42-20 1DFS9-52-20 1DFS9-42-24 1DFS9-52-24 |
M20x1.5 M22x1.5 M24x1.5 M24x1.5 M30x2 M36x2 M30x2 M36x2 M42x2 M36x2 M42x2 M52x2 M42x2 M52x2 |
12 14 16 16 20 25 20 25 30 25 30 38 30 38 |
31.8 31.8 31.8 41.3 41.3 41.3 47.6 47.6 47.6 54 54 54 63.5 63.5 |
50 50 38 45 46 48 65 53 55 64 58 61 76 72 |
42.5 42 29.5 36.5 35.5 36 54.5 44 41.5 52 44.5 45 63.5 56 |
7.7 7.7 7.7 8.7 8.7 8.7 9.5 9.5 9.5 10.2 10.2 10.2 12.5| 12.5 |
39 39 39 48 48 48 60 60 60 68 68 68 76 76 |
58.5 59.5 48 55 57 60 75 65 68 76 71 76 90 87 |
22 22 24 32 32 32 41 41 41 42 46 46 50 50 |
24 27 30 30 36 46 36 46 50 46 50 60 50 60 |
M8X30 M8X30 M8X30 M10X35 M10X35 M10X35 M12X45 M12X45 M12X45 M14X50 M14X50 M14X50 M16X55 M16X55 |
370 390 490 920 970 1110 1690 1670 1630 2230 2220 2390 2380 2580 |
420 420 400 400 400 400 420 400 400 420 400 315 420 315 |
S S S S S S S S S S S S S S |
Note:In case if you are interestad to order adapter in complete set with split flange clamps and Screw it is nexessary to insert suffix”ZH”after our part NO,for example 1DFS9-36-ZH
