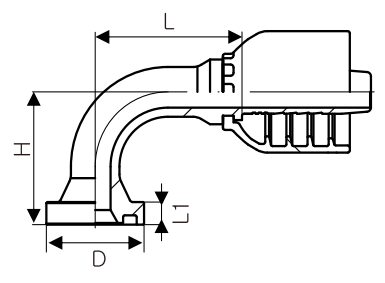

90° Bend SAE Flange 3000 PSI
| Code PART NO. |
Flange Model | Hose HOSEBORE | Dimensions | ||||
| FLANGE SIZE | Nominal Inner Diameter DN | Dash Number | L | H | D | L1 | |
| 87391-08-08RW 87391-12-08RW 87391-12-10RW 87391-12-12RW 87391-12-16RW 87391-16-12RW 87391-16-16RW 87391-16-20RW 87391-20-16RW 87391-20-20RW 87391-24-20RW 87391-24-24RW 87391-32-24RW 87391-32-32RW |
1/2″ 3/4″ 3/4″ 3/4″ 3/4″ 1″ 1″ 1″ 1.1/4″ 1.1/4″ 1.1/2″ 1.1/2″ 2″ 2″ |
13 13 16 19 25 19 25 32 25 32 32 38 38 51 |
8 8 10 12 16 12 16 20 16 20 20 24 24 32 |
44.5 44.5 55 62 74 62 74 91.5 74 91.5 91.5 108 108 133.8 |
40 58 58 58 68 70 70 82 90 90 104 104 138 138 |
30.2 38.1 38.1 38.1 38.1 44.4 44.4 44.4 50.8 50.8 60.3 60.3 71.4 71.4 |
6.73 6.73 6.73 6.73 6.73 8 8 8 8 8 8 8 9.53 9.53 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, the code changes to 87392-XX-XXRW.
