14211-RW

90° American JIC internal thread 74° internal cone surface

Get prices +86 18331807383

Product Description

90° American JIC internal thread 74° internal cone surface

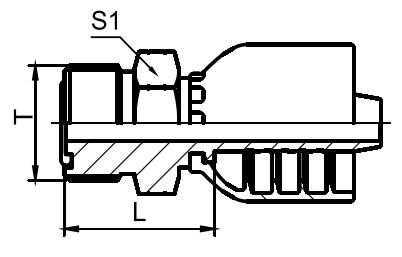

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	S1
24211-04-04RW 24211-04-05RW 24211-04-06RW 24211-06-04TRW 24211-06-05TRW 24211-06-06RW 24211-08-06RW 24211-08-08TRW 24211-08-06TRW 24211-08-08RW 24211-08-10RW 24211-10-08TRW 24211-10-10RW 24211-10-12RW 24211-12-08TRW 24211-12-10TRW 24211-12-12RW 24211-12-16RW 24211-16-12TRW 24211-16-14TRW 24211-16-16TRW 24211-16-20RW 24211-20-16TRW 24211-24-20TRW 24211-24-24TRW	9/16″X18 9/16″X18 9/16″X18 11/16″X16 11/16″X16 11/16″X16 11/16″X16 13/16″X16 13/16″X16 13/16″X16 13/16″X16 1″X14 1″X14 1″X14 1.3/16″X12 1.3/16″X12 1.3/16″X12 1.3/16″X12 1.7/16″X12 1.7/16″X12 1.7/16″X12 1.7/16″X12 1.11/16″X12 2″X12 2″X12	6 8 10 6 8 10 13 8 10 13 16 13 16 19 13 16 19 25 19 22 25 32 25 32 38	4 5 6 4 5 6 8 5 6 8 10 8 10 12 8 10 12 16 12 14 16 20 16 20 24	22.5 22.5 22.5 23.5 23.5 25.5 26 25 25 28 29 29.5 33 33.5 30.5 31.5 35 36 35 35 35 39.5 35 36 36	17 17 17 22 22 22 22 27 24 24 24 30 30 30 36 36 36 36 41 41 41 41 50 60 60
