12611A-RW

90° bend metric internal thread 24° tapered with O-ring heavy series

Get prices +86 18331807383

Product Description

90° bend metric internal thread 24° tapered with O-ring heavy series

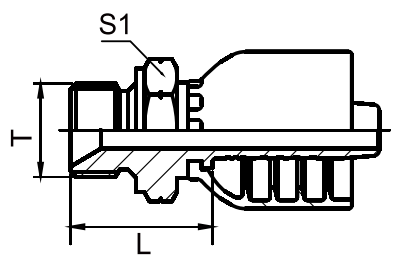

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	1
12611A-04-04RW 12611A-06-05RW 12611A-06-06RW 12611A-06-08RW 12611A-08-06RW 12611A-08-08RW 12611A-08-10RW 12611A-10-08RW 12611A-10-10RW 12611A-12-08RW 12611A-12-10RW 12611A-12-12RW 12611A-16-12RW 12611A-16-16RW 12611A-20-16RW 12611A-20-20RW 12611A-24-20RW 12611A-24-24RW 12611A-32-32RW	G1/4″X19 G3/8″X19 G3/8″X19 G3/8″X19 G1/2″X14 G1/2″X14 G1/2″X14 G5/8″X14 G5/8″X14 G3/4″X14 G3/4″X14 G3/4″X14 G1″X11 G1″X11 G1.1/4″X11 G1.1/4″X11 G1.1/2″X11 G1.1/2″X11 G2″X11	6 8 10 13 10 13 16 13 16 13 16 19 19 25 25 32 32 38 51	4 5 6 8 6 8 10 8 10 8 10 12 12 16 16 20 20 24 32	25.5 27.5 26 28 32 33 34 36 37 35 36 37 39 42 45 45 49 49 54.5	19 22 22 22 27 27 27 30 30 32 32 32 41 41 50 50 55 55 70
