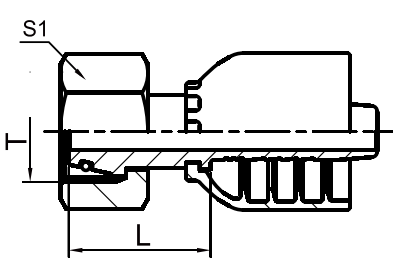

Metric internal thread 24° tapered with O-ring light series
| Code PART NO. |
Thread T | Hose bore | Tube diameter | Dimensions | ||
| THREAD T | Nominal internal diameter DN | Mark DASH | TUBE O.E. | L | S1 | |
| 20411-12-04WRW 20411-14-04TRW 20411-16-04TRW 20411-16-05TRW 20411-18-05TRW 20411-18-06TRW 20411-22-08TRW 20411-26-08TRW 20411-26-10TRW 20411-30-10TRW 20411-30-12TRW 20411-36-12TRW 20411-36-16TRW 20411-45-16TRW 20411-45-20TRW 20411-52-20TRW 20411-52-24TRW |
M12X1.5 M14X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M22X1.5 M26X1.5 M26X1.5 M30X2 M30X2 M36X2 M36X2 M45X2 M45X2 M52X2 M52X2 |
6 6 6 8 8 10 13 13 16 16 19 19 25 25 32 32 38 |
4 4 4 5 5 6 8 8 10 10 12 12 16 16 20 20 20 |
6 8 10 10 12 12 15 18 18 22 22 28 28 35 35 42 42 |
22 23.5 20.5 25.5 23.5 26.5 28.5 30 32 32.5 33.5 35 36 34 35 38 38 |
17 17 19 19 22 22 27 32 32 36 36 41 41 50 50 60 60 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 20412-XX-XXTRW
