22691K
90° British pipe short body internal thread 60° external conical surface
90° British pipe short body internal thread 60° external conical surface
| Code PART NO. |

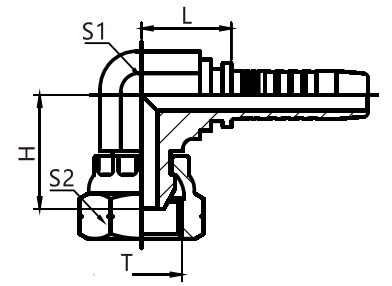

Thread T | Hose Bore | Dimensions | ||||
| THREAD T | Nominal Inner Diameter DN | Designation DASH | L | H | S1 | S2 | |
| 22691K-04-04 22691K-06-04 22691K-06-05 22691K-06-06 22691K-08-06 22691K-08-08 22691K-10-10 22691K-12-12 22691K-16-16 |
G1/4″X19 G3/8″X19 G3/8″X19 G3/8″X19 G1/2″X14 G1/2 ” X14 G5/8″X14 G3/4 ” X14 G1″X11 |
6 6 8 10 10 13 16 19 25 |
4 4 5 6 6 8 10 12 16 |
17.5 20 20 20 23 23.5 25 27.5 32.5 |
22 24 24 24 26.5 28.5 29.5 33 38.1 |
14 16 16 16 19 19 22 27 33 |
19 22 22 22 27 27 30 32 41 |
