12611A

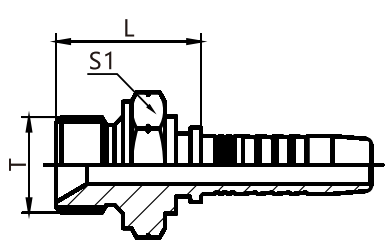

British standard external thread 60° conical surface or hexagonal end face combined gasket sealing dual-use joint
British standard external thread 60° conical surface or hexagonal end face combined gasket sealing dual-use joint
| Code PART NO. |
Thread T | Hose bore | Dimensions | ||
| THREAD T | Nominal inner diameter DN | Designation DASH | L | 1 | |
| 12611A-04-04 12611A-06-05 12611A-06-06 12611A-06-08 12611A-08-06 12611A-08-08 12611A-08-10 12611A-10-08 12611A-10-10 12611A-12-08 12611A-12-10 12611A-12-12 12611A-16-12 12611A-16-16 12611A-20-16 12611A-20-20 12611A-24-20 12611A-24-24 12611A-32-32 |
G1/4″X19 G3/8″X19 G3/8″X19 G3/8″X19 G1/2″X14 G1/2″X14 G1/2″X14 G5/8″X14 G5/8″X14 G3/4″X14 G3/4″X14 G3/4″X14 G1″X11 G1″X11 G1.1/4″X11 G1.1/4″X11 G1.1/2″X11 G1.1/2″X11 G2″X11 |
6 8 10 13 10 13 16 13 16 13 16 19 19 25 25 32 32 38 51 |
4 5 6 8 6 8 10 8 10 8 10 12 12 16 16 20 20 24 32 |
25.5 27.5 26 28 32 33 34 36 37 35 36 37 39 42 45 45 46 49 54.5 |
19 22 22 22 27 27 27 30 30 32 32 32 41 41 50 50 55 55 70 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, the code changes to 12612A-XX-XX.
