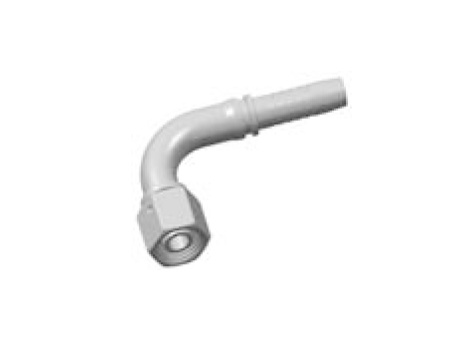

45° British pipe internal thread 60° external conical surface
| Code PART NO. |
Thread T | Hose Bore | Dimensions | |||
| THREAD T | Nominal Inner Diameter DN | Dash Number | L | H | S1 | |
| 22641-02-04 22641-04-04 22641-04-05 22641-04-06 22641-06-04T 22641-06-05T 22641-06-06 22641-06-08 22641-08-06T 22641-08-08 22641-10-08T 22641-10-10 22641-12-10T 22641-12-12 22641-16-12T 22641-16-16 22641-20-16T 22641-20-20 22641-24-20T 26411-24-24 22641-32-24T 22641-32-32 |
G1/8″X28 G1/4″X19 G1/4″X19 G1/4″X19 G3/8″X19 G3/8″X19 G3/8″X19 G3/8″X19 G1/2″X14 G1/2″X14 G5/8″X14 G5/8″X14 G3/4″X14 G3/4″X14 G1″X11 G1″X11 G1.1/4″X11 G1.1/4″X11 G1.1/2″X11 G1.1/2″X11 G2″X11 G2″X11 |
6 6 8 10 6 8 10 13 10 13 13 16 16 13 19 25 25 32 32 38 38 51 |
4 4 5 6 4 5 6 8 6 8 8 10 10 12 12 16 16 20 20 24 24 32 |
41.3 42.4 42.6 47.1 41.7 41.9 47.5 55.5 48.2 57 59 67 65.2 73 72.2 83.3 89 101 101.5 118 118.5 136.2 |
17.5 18.6 18.9 21.2 17.9 18.2 21.5 24.3 22.3 25.7 26.5 27.7 26 30.5 29.5 33.8 36 40 41 48 47.5 56.2 |
14 19 19 19 22 22 22 22 27 27 30 30 32 32 41 41 50 50 55 55 70 70 |
NOTE：1、For use with braided hoses. 2、If use spiral hoses,hose fitting series number is 26412-XX-XX.
