22641-RW

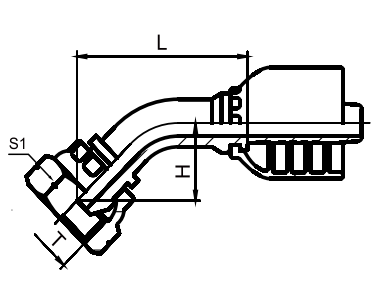

45° British pipe internal thread 60° external conical surface

Get prices +86 18331807383

Product Description

45° British pipe internal thread 60° external conical surface

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	H	S1
22641-04-04RW 22641-04-05RW 22641-06-04RW 22641-06-05RW 22641-06-06WR 22641-06-08RW 22641-08-08RW 22641-10-08RW 22641-10-10RW 22641-12-10RW 22641-12-12RW 22641-16-16RW 22641-20-20RW 22641-24-24RW 22641-32-32RW	G1/4″X19 G1/4″X19 G3/8″X19 G3/8″X19 G3/8″X19 G3/8″X19 G1/2″X14 G5/8″X14 G5/8″X14 G3/4″X14 G3/4″X14 G1″X11 G1.1/4″X11 G1.1/2″X11 G2″X11	6 8 6 8 10 13 13 13 16 16 19 25 32 38 51	4 5 4 5 6 8 8 8 10 10 12 16 20 24 32	38.8 41.7 39.8 41.7 44 54.3 51.3 54.3 64.2 67.2 71.7 84.4 100.8 121.1 155	15 18 16 18 18 23 20 23 25 28 29 35 40 50 70	19 19 22 22 22 22 27 30 30 32 32 41 50 55 70
