20591-TRW

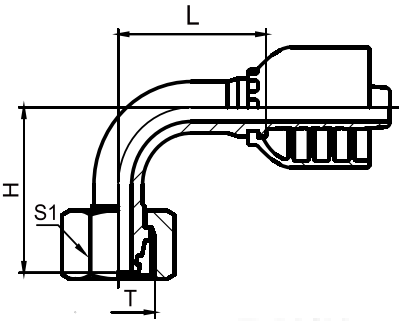

90° bend metric internal thread 24° tapered with O-ring heavy series

Get prices +86 18331807383

Product Description

90° bend metric internal thread 24° tapered with O-ring heavy series

Code PART NO.	Thread T	Hose Bore		Tube Diameter	Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	TUBE O.E.	L	H	S1
20591-16-04TRW 20591-18-04TRW 20591-18-05TRW 20591-18-06TRW 20591-20-05TRW 20591-20-06TRW 20591-22-06TRW 20591-24-08TRW 20591-30-10TRW 20591-30-12TRW 20591-36-12TRW 20591-36-16TRW 20591-42-16TRW 20591-52-20TRW	M16X1.5 M18X1.5 M18X1.5 M18X1.5 M20X1.5 M20X1.5 M22X1.5 M24X1.5 M30X2 M30X2 M36X2 M36X2 M42X2 M52X2	6 6 8 10 8 10 10 13 16 19 19 25 25 32	4 4 5 6 5 6 6 8 10 12 12 16 16 20	8 10 10 10 12 12 14 16 20 20 25 25 30 38	32 32 32.5 36.5 32.5 36.5 36.5 44.5 55 62 62 74 74 91.5	32 32 34 35.5 34 35.5 43 43 49.5 59 59 70 70 87	19 22 22 22 24 24 27 30 36 36 46 46 50 60
