24211-RW 24211-TRW

90° American JIC internal thread 74° internal cone surface

Get prices +86 18331807383

Product Description

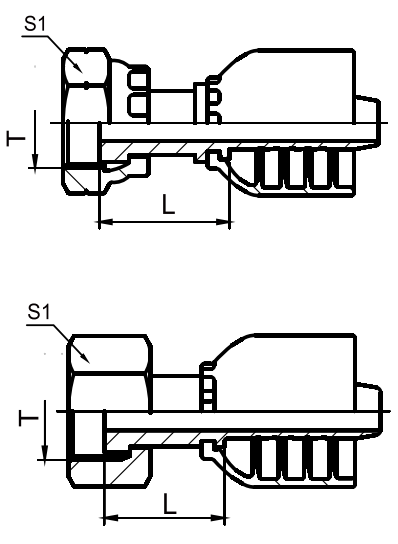

90° American JIC internal thread 74° internal cone surface

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	1
14211-04-04RW 14211-06-04RW 14211-06-06RW 14211-08-06RW 14211-08-08RW 14211-08-10RW 14211-10-08RW 14211-10-10RW 14211-12-08RW 14211-12-10RW 14211-12-12RW 14211-16-12RW 14211-16-16RW 14211-20-20RW 14211-24-24RW	9/16″X18 11/16 ” X16 11/16″X16 13/16 “X16 13/16″X16 13/16 ” X16 1″X14 1″X14 1.3/16″X12 1.3/16 ” X12 1.3/16″X12 1.7/16″ X12 1.7/16″X12 1.11/16″X12 2″X12	6 6 10 10 13 16 13 16 13 16 19 19 25 32 38	4 4 6 6 8 10 8 10 8 10 12 12 16 20 24	22.5 24 24 27.5 28.5 28.5 32.5 33.5 35.5 36 36.5 37 38.5 41.5 43	17 19 19 22 22 22 27 27 32 32 32 41 41 46 55
