10511-RW

Metric external thread 24° internal cone heavy series

Get prices +86 18331807383

Product Description

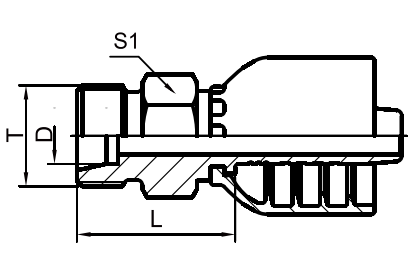

Metric external thread 24° internal cone heavy series

Code PART NO.	Thread T	Hose bore		Tube diameter	Dimensions
	THREAD T	Nominal inner diameter DN	Mark D	TUBE O.D.	L	D	1
10511-14-04RW 10511-16-04RW 10511-18-04RW 10511-18-06RW 10511-20-05RW 10511-20-06RW 10511-22-06RW 10511-24-08RW 10511-30-10RW 10511-30-12RW 10511-36-12RW 10511-36-16RW 10511-42-16RW 10511-52-20RW	M14X1.5 M16X1.5 M18X1.5 M18X1.5 M20X1.5 M20X1.5 M22X1.5 M24X1.5 M30X2 M30X2 M36X2 M36X2 M42X2 M52X2	6 6 6 10 8 10 10 13 16 19 19 25 25 32	4 4 4 6 5 6 6 8 10 12 12 16 16 20	6 8 10 10 12 12 14 16 20 20 25 25 30 38	24 26.5 26.5 27 28 28 28.5 32 36 36 40 41 43 48	6 8 10 10 12 12 14 16 20 20 25 25 30 38	14 17 19 19 22 22 24 27 32 32 41 41 46 55
