24291-RW 24291-TRW

90° Bend American Standard ORFS Internal Thread Flat

Get prices +86 18331807383

Product Description

90° Bend American Standard ORFS Internal Thread Flat

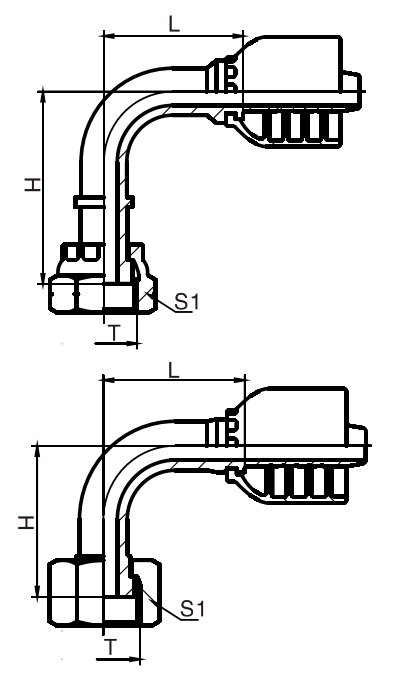

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	H	S1
24291-04-04RW 24291-04-05RW 24291-06-05TRW 24291-06-06RW 24291-06-08RW 24291-08-06TRW 24291-08-08RW 24291-08-10RW 24291-10-08TRW 24291-10-10RW 24291-10-12TRW 24291-12-10TRW 24291-12-12RW 24291-12-16RW 24291-16-12TRW 24291-16-14TRW 24291-16-16TRW 24291-20-16TRW 24291-24-20TRW 24291-24-24TRW	9/16″X18 9/16″X18 11/16″X16 11/16″X16 11/16″X16 13/16″X16 13/16″X16 13/16″X16 1″X14 1″X14 1″X14 1.3/16″X12 1.3/16″X12 1.3/16″X12 1.7/16″X12 1.7/16″X12 1.7/16″X12 1.11/16″X12 2″X12 2″X12	6 8 8 10 13 10 13 16 13 16 13 16 19 25 19 22 25 25 32 38	4 5 5 6 8 6 8 10 8 10 12 10 12 16 12 14 16 16 20 24	30 33 33 35.3 41 35.3 41 56.5 41 56 65.5 59 65.5 76.7 65.5 71.2 76.9 76.7 91.5 109.4	41 44 37.5 49.3 55 39.8 575 61.5 46 66 75.5 51.5 77 83.5 63 63 67.5 67.5 78.5 92	19 19 22 22 22 27 27 27 30 30 30 36 36 36 41 41 41 50 50 60
