20541-TRW

45° Metric Internal Thread 24° Cone with O-ring Heavy Series

Get prices +86 18331807383

Product Description

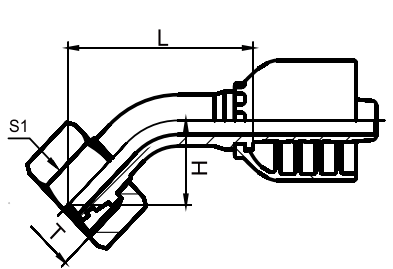

45° Metric Internal Thread 24° Cone with O-ring Heavy Series

Code PART NO.	Thread T	Hose Bore		Tube Diameter	Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	TUBE O.E.	L	H	S1
20541-16-04TRW 20541-18-04TRW 20541-18-05TRW 20541-18-06TRW 20541-20-05TRW 20541-20-06TRW 20541-22-06TRW 20541-24-08TRW 20541-30-10TRW 20541-30-12TRW 20541-36-12TRW 20541-36-16TRW 20541-42-16TRW 20541-52-20TRW	M16X1.5 M18X1.5 M18X1.5 M18X1.5 M20X1.5 M20X1.5 M22X1.5 M24X1.5 M30X2 M30X2 M36X2 M36X2 M42X2 M52X2	6 6 8 10 8 10 10 13 16 19 19 25 25 32	4 4 5 6 5 6 6 8 10 12 12 16 16 20	8 10 10 10 12 12 14 16 20 20 25 25 30 38	40.8 40.8 41.7 44.5 41.7 44.5 48.9 52.3 64.2 73.2 73.2 84.9 84.9 102.75	17 17 18 18.5 18 18.5 22.9 21 25 30.5 30.5 35.5 35.5 42	19 22 22 22 24 24 27 30 36 36 46 46 50 60
