20491-TRW

90° Bend Metric External Thread 24° Taper with O-ring Light Series

Get prices +86 18331807383

Product Description

90° Bend Metric External Thread 24° Taper with O-ring Light Series

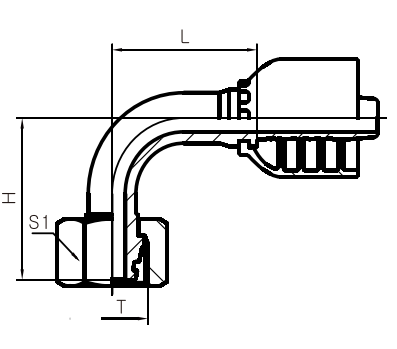

Code PART NO.	Thread T	Hose Bore		Tube Diameter	Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	TUBE O.E.	L	H	S1
20491-14-04TRW 20491-16-04TRW 20491-16-05TRW 20491-18-05TRW 20491-18-06TRW 20491-22-08TRW 20491-26-08TRW 20491-26-10TRW 20491-30-10TRW 20491-30-12TRW 20491-36-12TRW 20491-36-16TRW 20491-45-16TRW 20491-45-20TRW 20491-52-20TRW 20491-52-24TRW	M14X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M22X1.5 M26X1.5 M26X1.5 M30X2 M30X2 M36X2 M36X2 M45X2 M45X2 M52X2 M52X2	6 6 8 8 10 13 13 16 16 19 19 25 25 32 32 38	4 4 5 5 6 8 8 10 10 12 12 16 16 20 20 24	8 10 10 12 12 15 18 18 22 22 28 28 35 35 42 42	32 32 32.5 32.5 36.5 44.5 44.5 55 55 62 62 74 74 91.5 91.5 108	30.5 33 33 36 36 40.5 51.5 51.5 56 56 68.5 68.5 78.5 78.5 95 95	17 19 19 22 22 27 32 32 36 36 41 41 50 50 60 60
