10411-RW

Metric external thread 24° internal cone light series

Get prices +86 18331807383

Product Description

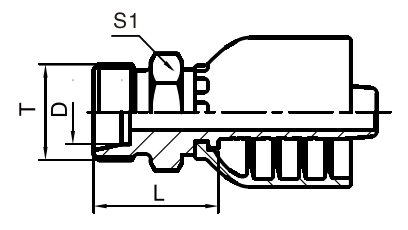

Metric external thread 24° internal cone light series

Code PART NO.	Thread T	Hose bore		Tube outer diameter	Dimensions
	THREAD T	Nominal inner diameter DN	Mark DASH	TUBE O.D	L	D	1
10411-12-04RW 10411-14-04RW 10411-14-05RW 10411-16-04RW 10411-16-05RW 10411-16-06RW 10411-18-05RW 10411-18-06RW 10411-22-06RW 10411-22-08RW 10411-26-08RW 10411-26-10RW 10411-30-10RW 10411-30-12RW 10411-36-16RW 10411-45-20RW 10411-52-24RW	M12X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M22X1.5 M22X1.5 M26X1.5 M26X1.5 M30X2 M30X2 M36X2 M45X2 M52X2	6 6 8 6 8 10 8 10 10 13 13 16 16 19 25 32 38	4 4 5 4 5 6 5 6 6 8 8 10 10 12 16 20 24	6 8 8 10 10 10 12 12 15 15 18 18 22 22 28 35 42	13.5 13.5 14.5 16.5 16.5 16.5 16.5 16.5 17.5 18 19 19.5 22.5 22.5 25.5 27.5 27.5	6 8 8 10 10 10 12 12 15 15 18 18 22 22 28 35 42	14 17 17 17 17 17 19 19 24 24 27 27 32 32 41 46 55
