16711-RW

American JIC external thread 74° external cone surface

Get prices +86 18331807383

Product Description

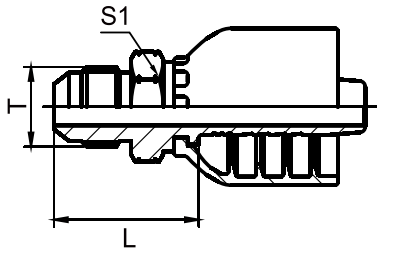

American JIC external thread 74° external cone surface

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	1
16711-04-04RW 16711-05-04RW 16711-05-05RW 16711-05-06RW 16711-06-04RW 16711-06-05RW 16711-06-06RW 16711-08-06RW 16711-08-08RW 16711-10-06RW 16711-10-08RW 16711-10-10RW 16711-12-08RW 16711-12-10RW 16711-12-12RW 16711-12-16RW 16711-14-10RW 16711-14-12RW 16711-16-12RW 16711-16-16RW 16711-20-16RW 16711-20-20RW 16711-24-20RW 16711-24-24RW 16711-32-32RW	7/16″X20 1/2″X20 1/2″X20 1/2″X20 9/16″X18 9/16″X18 9/16″X18 3/4″X16 3/4″X16 7/8″X14 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.1/16″X12 1.1/16″X12 1.3/16″X12 1.3/16″X12 1.5/16″X12 1.5/16″X12 1.5/8″X12 1.5/8″X12 1.7/8″X12 1.7/8″X12 2.1/2″X12	6 6 8 10 6 8 10 10 13 10 13 16 13 16 19 25 16 19 19 25 25 32 32 38 51	4 4 5 6 4 5 6 6 8 6 8 10 8 10 12 16 10 12 12 16 16 20 20 24 32	26.5 26.5 26.5 26.5 26.5 26.5 26.5 31 31.5 32 34.5 35.5 39 40 40 41 40 40.5 42.5 43.5 46 47.5 53.5 53 64	12 14 14 17 17 17 17 22 22 24 24 24 27 27 27 30 32 32 36 36 46 46 50 50 65
