26791-RW

90° American JIC internal thread 74° internal cone surface

Get prices +86 18331807383

Product Description

90° American JIC internal thread 74° internal cone surface

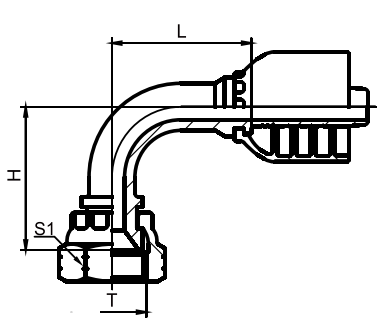

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	H	S1
26791-04-04RW 26791-05-05RW 26791-06-05RW 26791-06-06RW 26791-06-08RW 26791-08-06RW 26791-08-08RW 26791-10-08RW 26791-10-10RW 26791-10-12RW 26791-12-10RW 26791-12-12RW 26791-14-12RW 26791-16-16RW 26791-20-20RW 26791-24-24RW 26791-32-32RW	7/16″X20 1/2″X20 9/16″X18 9/16″X18 9/16″X18 3/4″X16 3/4″X16 7/8″X14 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.3/16″X12 1.5/16″X12 1.5/8″X12 1.7/8″X12 2.1/2″X12	6 8 8 10 13 10 13 13 16 19 16 19 19 25 32 38 51	4 5 5 6 8 6 8 8 10 12 10 12 12 16 20 24 32	32 32.5 32.5 36.5 44.5 36.5 44.5 44.5 55 62 55 62 64 74 91.5 108 133.8	32 32 38 38 41 41 41 47 47 58 58 58 63.5 71 78 86 140	14 17 19 19 19 22 22 27 27 27 32 32 36 41 50 60 75
