Metric internal thread 24° tapered with O-ring heavy series
| Code PART NO. |

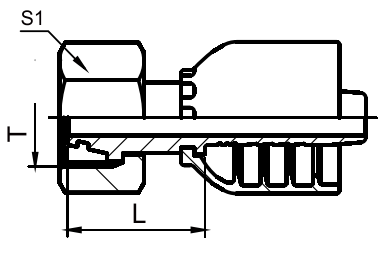

Thread T | Hose bore | Tube diameter | Dimensions | ||
| THREAD T | Nominal internal diameter DN | Dash number | TUBE O.E. | L | S1 | |
| 20511-16-04TRW 20511-18-04TRW 20511-18-05TRW 20511-18-06TRW 20511-20-05TRW 20511-20-06TRW 20511-22-06TRW 20511-24-08TRW 20511-30-10TRW 20511-30-12TRW 20511-36-12TRW 20511-36-16TRW 20511-42-16TRW 20511-52-20TRW |
M16X1.5 M18X1.5 M18X1.5 M18X1.5 M20X1.5 M20X1.5 M22X1.5 M24X1.5 M30X2 M30X2 M36X2 M36X2 M42X2 M52X2 |
6 6 8 10 8 10 10 13 16 19 19 25 25 32 |
4 4 5 6 5 6 6 8 10 12 12 16 16 20 |
8 10 10 10 12 12 14 16 20 20 25 25 30 38 |
24 25 25 25 25.5 25.5 25.5 30 34 35 32 35.5 36 36 |
19 22 22 22 24 24 27 30 36 36 46 46 50 60 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for spiral hoses, change the code to 20512-XX-XXTRW
