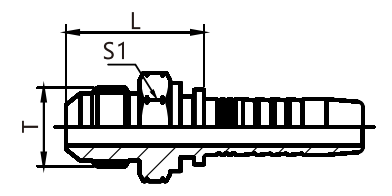

American standard JC external thread 74° external cone surface
| Code PART NO. |
Thread T | Hose Bore | Dimensions | ||
| THREAD T | Nominal Inner Diameter DN | Dash Number | L | 1 | |
| 16711-04-04 16711-05-04 16711-05-05 16711-05-06 16711-06-04 16711-06-05 16711-06-06 16711-08-06 16711-08-08 16711-10-06 16711-10-08 16711-10-10 16711-12-08 16711-12-10 16711-12-12 16711-12-16 16711-14-10 16711-14-12 16711-16-12 16711-16-16 16711-20-16 16711-20-20 16711-24-20 16711-24-24 16711-32-32 |
7/16″ X20 1/2 ” X20 1/2 ” X20 1/2 ” X20 9/16″ X18 9/16″ X18 9/16″ X18 3/4″X16 3/4″X16 7/8 ” X14 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″ X12 1.1/16″X12 1.1/16″X12 1.3/16″X12 1.3/16″X12 1.5/16″X12 1.5/16°X12 1.5/8″X12 1.5/8″ X12 1.7/8″X12 1.7/8″X12 2.1/2″X12 |
6 6 8 10 6 8 10 10 13 10 13 16 13 16 19 25 16 19 19 25 25 32 32 38 51 |
4 4 5 6 4 5 6 6 8 6 8 10 8 10 12 16 10 12 12 16 16 20 20 24 32 |
26.5 26.5 26.5 26.5 26.5 26.5 26.5 31 31.5 32 34.5 35.5 39 40 40 41 40 40.5 42.5 43.5 46 47.5 53.5 53 64 |
12 14 14 17 17 17 17 22 22 24 24 24 27 27 27 32 32 32 36 36 46 46 50 50 65 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 16712-XX-XX.
