22691-ORT

90° British pipe internal thread with 60° external conical surface and O-ring

Get prices +86 18331807383

Product Description

90° British pipe internal thread with 60° external conical surface and O-ring

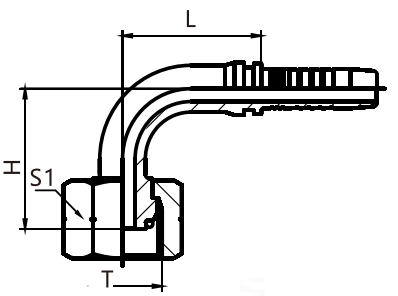

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Designation DASH	L	H	S1
22691-02-04OR 22691-04-04OR 22691-04-05OR 22691-04-06OR 22691-06-04ORT 22691-06-05ORT 22691-06-06OR 22691-06-08OR 22691-08-06ORT 22691-08-08OR 22691-10-08ORT 22691-10-10OR 22691-12-10ORT 22691-12-12OR 22691-16-12ORT 22691-16-16OR 22691-20-16ORT 22691-20-20OR 22691-24-20ORT 22691-24-24OR 22691-32-24ORT 22691-32-32OR	G1/8″X28 G1/4″X19 G1/4″X19 G1/4″X19 G3/8″X19 G3/8″X19 G3/8″X19 G3/8″X19 G1/2″X14 G1/2″X14 G5/8″X14 G5/8″X14 G3/4″X14 G3/4″ X14 G1″X11 G1″X11 G1.1/4″X11 G1.1/4″X11 G1.1/2″X11 G1.1/2″X11 G2″X11 G2″X11	6 6 8 10 6 8 10 13 10 13 13 16 16 19 19 25 25 32 32 38 38 51	4 4 5 6 4 5 6 8 6 8 8 10 10 12 12 16 16 20 20 24 24 32	32 32 32.5 36.5 32 32.5 36.5 44.5 36.5 44.5 44.5 55 55 62 62 74 74 91.5 91.5 108 108 133.8	27 28 31.5 34 31 34 34 42 35 41 45 51 56 58 62 70 76 85 92 100 110 140	14 19 19 19 22 22 22 22 27 27 30 30 32 32 41 41 50 50 55 55 70 70
