British internal thread 60° external conical double hexagon
| Code PART NO. |

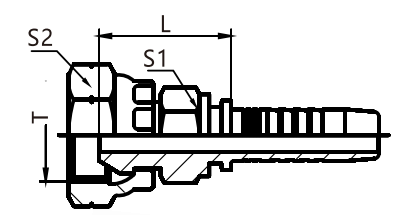

Thread T | Hose Bore | Dimensions | |||
| THREAD T | Nominal Inner Diameter DN | Dash Number | L | S1 | S2 | |
| 22611D-04-04SM 22611D-06-06SM 22611D-08-08SM 22611D-10-08SM 22611D-12-08SM 22611D-12-12SM 22611D-16-16SM 22611D-20-20SM |
G1/4″X19 G3/8 ” X19 G1/2″X14 G5/8″ X14 G3/4″ X14 G3/4″ X14 G1″X11 G1.1/4″X11 |
6 10 13 13 13 19 25 32 |
4 6 8 8 8 12 16 20 |
23 25 28.5 30 31.5 32.5 36.3 41.5 |
14 17 22 22 27 27 32 41 |
19 22 27 30 32 32 41 50 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, the code changes to 22612D-XX-XXSM.
