20141 – 北京普力得科技有限公司

Product Description

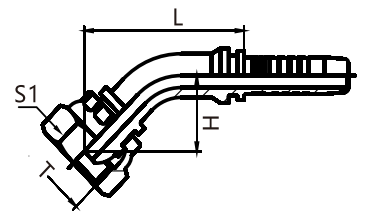

Metric internal threaded spherical

Code PART NO.	Thread T	Hose bore		Dimensions
	THREAD T	Nominal internal diameter DN	Designation DASH	L	H	S1
20141-12-04 20141-14-04T 20141-14-05 20141-16-04T 20141-16-05T 20141-16-06 20141-18-06T 20141-18-08 20141-22-08T 20141-24-10 20141-27-10T 20141-30-12T 20141-39-16T 20141-45-20T 20141-52-24T	M12X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M22X1.5 M24X1.5 M27X1.5 M30X1.5 M39X2 M45X2 M52X2	6 6 8 6 8 10 10 13 13 16 16 19 25 32 38	4 4 5 4 5 6 6 8 8 10 10 12 16 20 24	39.5 43 45.5 42.5 44.5 50 50 58.5 60 67 69 76.5 86 99 114	16.5 18.3 22.2 21.4 19.5 24 24 28.8 27.2 27 29.6 33.7 33.6 38.4 44.6	17 17 19 19 19 22 22 24 27 30 32 36 46 55 60

Note: 1. The codes in the table are used for braided hoses. 2. If used for spiral hoses, change the code to 20142-XX-XX.
