26741-RW

American JIC external thread 74° internal cone surface

Get prices +86 18331807383

Product Description

American JIC external thread 74° internal cone surface

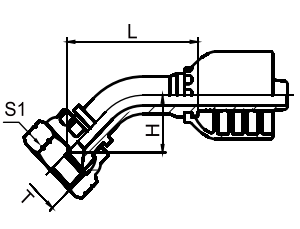

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	H	S1
26741-04-04RW 26741-05-05RW 26741-06-05RW 26741-06-06RW 26741-06-08RW 26741-08-06RW 26741-08-08RW 26741-10-08RW 26741-10-10RW 26741-10-12RW 26741-12-10RW 26741-12-12RW 26741-14-12RW 26741-16-16RW 26741-20-20RW 26741-24-24RW 26741-32-32RW	7/16″X20 1/2″X20 9/16″X18 9/16″X18 9/16″X18 3/4″X16 3/4″X16 7/8″X14 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.3/16″X12 1.5/16″X12 1.5/8″X12 1.7/8″X12 2.1/2″X12	6 8 8 10 12 10 13 13 16 20 16 19 19 25 32 38 51	4 5 5 6 8 6 8 8 10 12 10 12 12 16 20 24 32	33.8 33.7 34.7 37 46.3 41 46.3 47.3 55.2 63.7 60.2 63.7 73.5 73.4 92.8 113.1 136.5	10 10 11 11 15 15 15 16 16 21 21 21 31 24 32 42 51.5	14 17 19 19 19 22 22 27 27 27 32 32 36 41 50 60 75
