24241-RW 24241-TRW

45° Bend American ORFS Internal Thread Plane

Get prices +86 18331807383

Product Description

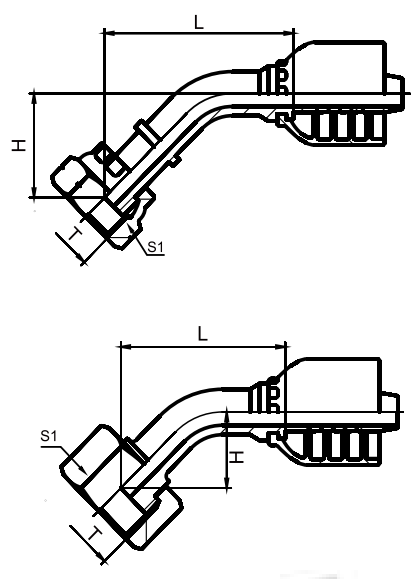

45° Bend American ORFS Internal Thread Plane

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	H	S1
24211-04-04RW 24241-04-05RW 24241-04-06RW 24241-06-04TRW 24241-06-05TRW 24241-06-06RW 24241-08-06TRW 24241-08-08RW 24241-08-10RW 24241-10-08TRW 24241-10-10RW 24241-12-08TRW 24241-12-10TRW 24241-12-12RW 24241-12-16RW 24241-16-12TRW 24241-16-14TRW 24241-16-16TRW 24241-20-16TRW 24241-24-20TRW 24241-24-24TRW	9/16″X18 9/16″X18 9/16″X18 11/16″X16 11/16″X16 11/16″X16 13/16″X16 13/16″X16 13/16″X16 1″X14 1″X14 1.3/16″X12 1.3/16″X12 1.3/16″X12 1.3/16″X12 1.7/16″X12 1.7/16″X12 1.7/16″X12 1.11/16″X12 2″X12 2″X12	6 8 10 6 8 10 10 13 16 13 10 13 16 19 25 19 22 25 25 32 38	4 5 6 4 5 6 6 8 10 8 10 8 10 12 16 12 14 16 16 20 24	33.8 33.7 37 34.8 34.7 37 41 46.3 55.2 47.3 55.2 52.3 60.2 63.7 73.4 66.7 66.7 73.4 81.4 102.8 113.1	10 10 11 11 11 11 15 15 16 16 16 21 21 21 24 24 24 24 32 42 42	17 17 17 22 22 22 24 24 24 30 30 36 36 36 36 41 41 41 50 60 60
