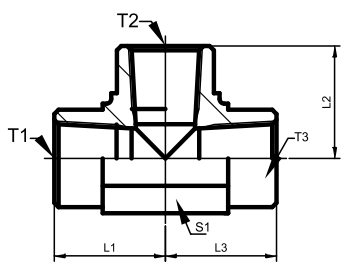

NPT Female Tee
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | ||||
| T1 | T2 | T3 | L1 | L2 | L3 | g | ||
| GN-02 GN-04 GN-06 GN-08 GN-12 GN-16 GN-20 GN-24 GN-32 |
NPT1/8″X27 NPT1/4″X18 NPT3/8″X18 NPT1/2″X14 NPT3/4″X14 NPT1″ X11.5 NPT1.1/4″ X11.5 NPT1.1/2″X11.5 NPT2″X11.5 |
NPT1/8″X27 NPT1/4″X18 NPT3/8″X18 NPT1/2″X14 NPT3/4″X14 NPT1″X11.5 NPT1.1/4″X11.5 NPT1.1/2″X11.5 NPT2″X11.5 |
NPT1/8″X27 NPT1/4″X18 NPT3/8″X18 NPT1/2″X14 NPT3/4″X14 NPT1″X11.5 NPT1.1/4“X11.5 NPT1.1/2″X11.5 NP12“X11.5 |
20 22.5 26 31 34 42 48 53 62 |
20 22.5 26 31 34 42 48 53 62 |
20 22.5 26 31 34 42 48 53 62 |
48 61 112 133 194 365 530 1027 1202 |
34.5 21 21 21 17 14 8 7 — |
