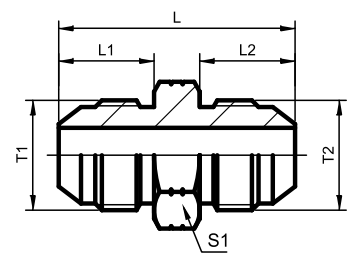

JIC Male 74° Cone
| PART NO. | THREAD | DIMENSIONS | DIMENSIONS | WORKING PRESSURE | ||||
| T1 | T2 | L1 | L2 | L3 | 1 | g | ||
| 1J-04 1J-04-05 1J-04-06 1J-04-08 1J-05 1J-05-06 1J-05-08 1J-06 1J-06-08 1J-06-10 1J-08 1J-08-10 1J-08-12 1J-10 1J-10-12 1J-10-16 1J-12 1J-12-14 1J-12-16 1J-14 1J-14-16 1J-16 1J-16-20 1J-16-24 1J-20 1J-20-24 1J-20-32 1J-24 1J-24-32 1J-32 |
7/16″X20 7/16″X20 7/16″X20 7/16″X20 1/2X20 1/2″X20 1/2″X20 9/16″X18 9/16″X18 9/16″X18 3/4″X16 3/4″X16 3/4″X16 7/8″X14 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.1/16″X12 1.3/16″X12 1.3/16″X12 1.5/16″X12 1.5/16″X12 1.5/16″X12 1.5/8″X12 1.5/8″X12 1.5/8″X12 1.7/8″X12 1.7/8″X12 2.1/2″X12 |
7/16″X20 1/2″X20 9/16″X18 3/4″X16 1/2″X20 9/16″X18 3/4″X16 9/16″X18 3/4″X16 7/8″X14 3/4″X16 7/8″X14 1.1/16″X12 7/8″X14 1.1/16″X12 1.5/16″X12 1.1/16″X12 1.3/16″X12 1.5/16″X12 1.3/16″X12 1.5/16″X12 1.5/16″X12 1.5/8″X12 1.7/8″X12 1.5/8″X12 1.7/8″X12 2.1/2″X12 1.7/8″X12 2.1/2″X12 2.1/2″X12 |
14 14 14 14 14 14 14 14.1 14.1 14.1 16.7 16.7 16.7 19.3 19.3 19.3 21.9 21.9 21.9 22.6 22.6 23.1 23.1 23.1 24.3 24.3 24.3 27.5 27.5 33.9 |
14 14 14.1 16.7 14 14.1 16.7 14.1 16.7 19.3 16.7 19.3 21.9 19.3 21.9 23.1 21.9 22.6 23.1 22.6 23.1 23.1 24.3 27.5 24.3 27.5 33.9 27.5 33.9 33.9 |
34 34 36 38.5 34.8 34 38.5 34.2 38.5 41.5 42 44 49 46.5 51 53.5 54 55.5 56.1 56.1 56.5 57 60.5 65.5 62 67 75 70 78.5 85 |
12 14 17 22 14 17 22 17 22 24 22 24 30 24 30 36 30 32 36 32 36 36 46 50 46 50 65 50 65 65 |
23 26 35 60 29 35 63 35 62 81 78 92 148 102 152 219 175 203 236 239 260 257 384 497 422 523 978 553 896 1150 |
34.5 34.5 34.5 31 34.5 34.5 31 34.5 31 24 31 24 24 24 24 21 21 21 21 21 21 21 17 14 17 14 10.5 14 10.5 10.5 |
