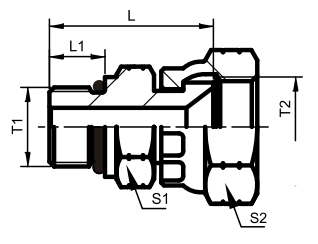

SAE O-Ring Boss L-Series / JIC Female 74° Seat
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | ||||
| T1 | T2 | L1 | L | S1 | 2 | 9 | ||
| 20J-04 20J-06-04 20J-05 20J-06 20J-04-06 20J-08-06 20J-08 20J-06-08 20J-10-08 20J-10 20J-08-10 20J-12-10 20J-12 20J-10-12 20J-16-12 20J-16 20J-12-16 20J-20 |
7/16″X20 9/16″X18 1/2″X20 9/16″X18 7/16″X20 3/4″X16 3/4″X16 9/16″X18 7/8″X14 7/8″X14 3/4″X16 1.1/16″X12 1.1/16″X12 7/8″X14 1.5/16″X12 1.5/16″X12 1.1/16″X12 1.5/8″X12 |
7/16″X20 7/16″X20 1/2″X20 9/16″X18 9/16″X18 9/16″X18 3/4″X16 3/4″X16 3/4″X16 7/8″X14 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.1/16″X12 1.5/16″X12 1.5/16″X12 1.5/8″X12 |
9.14 9.93 9.14 9.93 9.14 11.13 11.13 9.93 12.7 12.7 11.13 15.1 15.1 12.7 15.1 15.1 15.1 15.1 |
24.5 26 25 26 24.5 27.5 30 28 37 34 29.5 36 37.5 38.5 42 42 38.5 46.5 |
14 17 17 17 14 22 22 19 27 27 22 32 32 27 41 41 36 50 |
14 14 17 19 19 19 24 24 24 27 27 27 32 32 32 41 41 50 |
80 11 82 113 90 185 230 162 319 325 248 505 473 374 751 737 581 969 |
31.5 31.5 31.5 31.5 31.5 31 31 31.5 24 24 25 24 24 24 21 20 20 16 |
