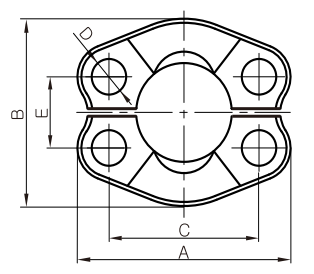

SAE Split Flange Clamps 3000 PSI ISO 6162-1-SAE J518

PART NO.	FLANGE SIZE	DIMENSIONS				BOLT	WORKING PRESSURE
		A	B	C	E		Mpa
FL-08 FL-08UN FL-12 FL-12UN FL-16 FL-16UN FL-20 FL-20UN FL-24 FL-24UN FL-32 FL-32UN FL-40 FL-40UN FL-48 FL-48UN FL-56 FL-56UN FL-64 FL-64UN	1/2″ 1/2″ 3/4″ 3/4″ 1″ 1″ 1.1/4″ 1.1/4″ 1.1/2″ 1.1/2″ 2″ 2″ 2.1/2″ 2.1/2″ 3″ 3″ 3.1/2″ 3.1/2″ 4″ 4″	54 54 65 65 70 70 79 79 94 94 102 102 114 114 135 135 152 152 162 162	46 46 52 52 59 59 73 73 83 83 97 97 109 109 131 131 140 140 152 152	38.1 38.1 47.63 47.63 52.37 52.37 58.72 58.72 69.85 69.85 77.77 77.77 88.9 88.9 106.38 106.38 120.65 120.65 130.18 130.18	17.48 17.48 22.23 22.23 26.19 26.19 30.18 30.18 35.71 35.71 42.88 42.88 50.8 50.8 61.93 61.93 69.85 69.85 77.77 77.77	M8X25 5/16″-18X1.1/4″ M10X30 3/8″-16X1.1/4″ M10X30 3/8″-16X1.1/4″ M10X30 7/16″-14X1.1/2″ M12X35 1/2″-13X1.1/2″ M12X35 1/2″-13X1.1/2″ M12X40 1/2″-13X1.3/4″ M16X45 5/8″-11X1.3/4″ M16X50 5/8″-11X2″ M16X50 5/8″-11X2″	34.5 34.5 34.5 34.5 34.5 34.5 27.6 27.6 20.7 20.7 20.7 20.7 17.2 17.2 13.8\| 13.8\| 3.4 3.4 3.4 3.4
