Product Description

SAE Whole Flange Clamps 3000 PSI ISO 6162-1-SAE J518

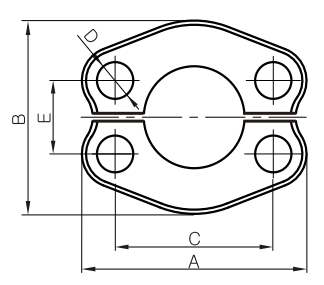

PART NO.	FLANGE SIZE	DIMENSIONS				BOLT	WORKING PRESSURE
		A	B	C	E		Mpa
FL-08W FL-08WUN FL-12W FL-12WUN FL-16W FL-16WUN FL-20W FL-20WUN FL-24W FL-24WUN FL-32W FL-32WUN FL-40W FL-40WUN FL-48W FL-48WUN FL-56W FL-56WUN FL-64W FL-64WUN	1/2″ 1/2″ 3/4″ 3/4″ 1° 1″ 1.1/4″ 1.1/4″ 1.1/2″ 1.1/2″ 2″ 2″ 2.1/2″ 2.1/2″ 3″ 3″ 3.1/2″ 3.1/2″ 4″ 4″	54 54 65 65 70 70 79 79 94 94 102 102 114 114 135 135 152 152 162 162	46 46 52 52 59 59 73 73 83 83 97 97 109 109 131 131 140 140 152 152	38.1 38.1 47.63 47.63 52.37 52.37 58.72 58.72 69.85 69.85 77.77 77.77 88.9 88.9 106.38 106.38 120.65 120.65 130.18 130.18	17.48 17.48 22.23 22.23 26.19 26.19 30.18 30.18 35.71 35.71 42.88 42.88 50.8 50.8 61.93 61.93 69.85 69.85 77.77 77.77	M8X25 5/16″-18X1.1/4″ M10X30 3/8″-16X1.1/4″ M10X30 3/8″-16X1.1/4″ M10X30 7/16″-14X1.1/2″ M12X35 1/2″-13X1.1/2″ M12X35 1/2″-13X1.1/2″ M12X40 1/2″-13X1.3/4″ M16X45 5/8″-11X1.3/4″ M16X50 5/8″-11X2″ M16X50 5/8″-11X2″	34.5 34.5 34.5 34.5 34.5 34.5 276 276 20.7 20.7 20.7 20.7 17.2 17.2 13.8 13.8 3.4 3.4 3.4 3.4
