CO9-OG,DO9-OG

Get prices +86 18331807383

Product Description

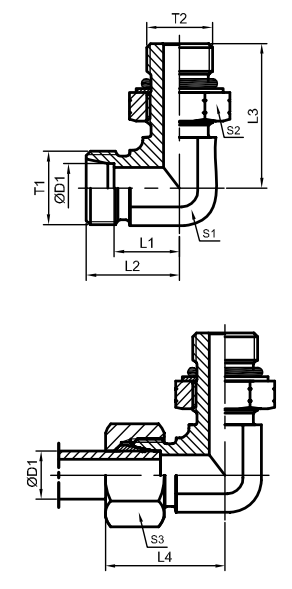

90° Elbow UN,UNF Adjustable Stud Ends With O-Ring Sealing ISO 11926

PART NO.

THREAD

TUBE O.D

DIMENSIONS

WEIGHT

WORKING PRESSURE

SERIES

g/pc

（bar）

1CO9-12-04OG
1C09-14-060G
1CO9-16-060G
1CO9-18-08OG
1CO9-22-10OG
1CO9-22-080G
1CO9-26-120G
1CO9-30-120G
1CO9-36-12OG
1CO9-36-160G
1CO9-45-20OG
1CO9-52-240G
1DO9-14-04OG
1DO9-16-060G
1DO9-18-060G
1DO9-18-060G
1DO9-20-080G
1DO9-22-100G
1DO9-24-100G
1DO9-30-120G
1DO9-36-160G
1DO9-42-20OG
1DO9-52-24OG

M12x1.5
M14x1.5
M16x1.5
M18x1.5
M22x1.5
M22x1.5
M26x1.5
M30x2
M36x2
M36x2
M45x2
M52x2
M14x1.5
M16x1.5
M18x1.5
M18x1.5
M20x1.5
M24x1.5
M24x1.5
M30x2
M36x2
M42x2
M52x2

7/16″x20
9/16″x18
9/16″x18
3/4″x16
7/8″x14
3/4″x16
1.1/16″x12
1.1/16″x12
1.1/16″x12
1.5/16″x12
1.5/8″x12
1.7/8″x12
7/16″x20
9/16″x18
9/16″x18
3/4″x16
3/4″x16
7/8″x14
7/8″x14
1.1/16″x12
1.5/16″x12
1.5/8″x12
1.7/8″x12

6
8
10
12
15
15
18
22
28
28
35
42
6
8
10
10
12
14
16
20
25
30
38

14
15.5
17
19
21
21
24
28
33.5
31
38
38
15
17
18
19.5
22
23
25
28
30
36
34

21
22.5
24
26
28
28
31.5
35.5
41
38.5
48.5
49
22
24
25.5
27
29.5
30.5
33.5
38.5
42
49.5
50

29
31.8
34
38
43
41
49
52
57.5
59
63
64
32
37
38
37.5
44
44
50
56
57.5
69
70

29
30.5
32
34
36
36
40
44
47.8
47
59
61
30
32
34
36
38
41
43
49
54
62
65

14
14
19
19
22
22
30
30
36
36
50
50
14
19
19
19
22
22
27
30
36
50
50

17
19
19
22
27
22
32
32
41
41
50
55
17
19
19
24
22
27
27
32
41
50
55

14
17
19
22
27
27
32
36
41
41
50
60
17
19
22
22
24
27
30
36
46
50
60

42
60
70
118
168
144
265
313
410
500
585
582
199
226
236
281
311
328
348
430
510
695
629

315
315
315
250
250
250
250
160
160
160
160
160
315
315
250
250
250
250
250
250
250
160
160

L
L
L
L
L
L
L
L
L
L
L
L
S
S
S
S
S
S
S
S
S
S
S

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix”RN” after our ,for example 1CO9-30-120G/RN.
