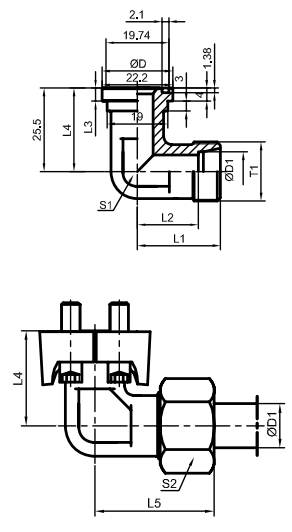

90° Metric Male Bite Type /SAE Flange 3000 PSI
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | BOLT | WEIGHT | WORKING PRESSURE | SERIES | |||||||
| T1 | D1 | D | L1 | L2 | L3 | L4 | L5 | 1 | S2 | g/pc | (bar) | |||
| 1CFL9-22-08 1CFL9-26-08 1CFL9-26-12 1CFL9-30-12 1CFL9-36-12 1CFL9-30-16 1CFL9-36-16 1CFL9-45-20 1CFL945-24 1CFL9-52-24 1DFL9-20-08 1DFL9-24-08 1DFL9-24-12 1DFL9-30-12 1DFL9-36-12 1DFL9-30-16 1DFL9-36-16 1DFL9-42-16 1DFL9-36-20 1DFL9-42-20 1DFL9-52-20 1DFL9-52-24 |
M22x1.5 M26x1.5 M26x1.5 M30x2 M36x2 M30x2 M36x2 M45x2 M45x2 M52x2 M20x1.5 M24x1.5 M24x1.5 M30x2 M36x2 M30x2 M36x2 M42x2 M36x2 M42x2 M52x2 M52x2 |
15 18 18 22 28 22 28 35 35 42 12 16 16 20 25 20 25 30 25 30 38 38 |
30.2 30.2 38.1 38.1 38.1 44.5 44.5 50.8 60.3 60.3 30.2 30.2 38.1 38.1 38.1 44.5 44.5 44.5 50.8 50.8 50.8 60.3 |
36 37 39 41 41 65 44 57 78 58 50 38 64 43 45 65 48 50 55 57 59 64 |
29 29.5 31.5| 33.5 33.5 57.5 36.5 46.5 67.5 47 42.5 29.5 55.5 32.5 33 54.5 36.5 36.5 43 43.5 43 48 |
6.7 6.7 6.7 6.7 6.7 8 8 8 8 8 6.7 6.7 6.7 6.7 6.7 8 8 8 8 8 B 8 |
36 36 42 42 42 60 45 50 55 55 36 36 43 42 42 45 45 45 50 50 50 55 |
44 46 48 50 50 74 53 68 83 70 58.5 48 73.5 54 57 77 57 63 67 71 74 79 |
24 24 30 30 30 34 36 41 50 50 22 24 27 30 30 36 36 36 41 41 41 50 |
27 32 32 36 41 36 41 50 50 60 24 30 30 36 46 36 46 50 46 50 60 60 |
M8X25 M8X25 M10X30 M10X30 M10X30 M10X30 M10X30 M10X35 M10X35 M12X35 M8X25 M8X25 M10X30 M10X30 M10X30 M10X30 M10X30 M10X30 M10X35 M10X35 M10X35 M10X35 |
400 440 660 660 780 810 850 1150 1550 1600 380 430 600 760 890 780 950 1060 1350 1400 1530 1950 |
315 315 315 160 160 160 160 160 160 160 210 350 350 350 350 350 350 350 280 280 280 210 |
L L L L L L L L L L S S S S S S S S S S S S |
Note :In case if you are interestad to order adapter in complete set with split flange clamps and screw it is nexessary to insert suffix”ZH”after our for example 1DFSL9-36-ZH
