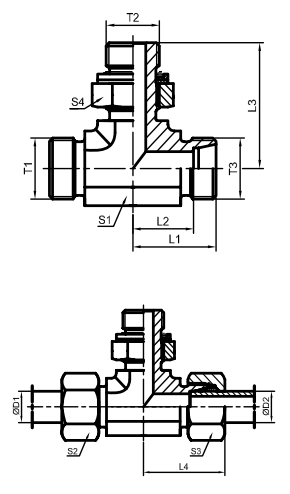

BSP Thread Adjustable Stud Ends With O-Ring Sealing Branch Tee
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | ||||||||
| T1/T3 | T2 | D1 | D2 | L1 | L2 | L3 | L4 | S1 | S2/S3 | S4 | g/pc | Ibar) | ||
| ACGC-12-02-12OG ACGC-14-04-14OG ACGC-16-04-16OG ACGC-18-06-18OG ACGC-22-08-22OG ACGC-26-08-26OG ACGC-30-12-30OG ACGC-36-16-36OG ACGC-45-20-45OG ADGD-14-04-14OG ADGD-16-04-16OG ADGD-18-06-18OG ADGD-20-06-20OG ADGD-22-08-22OG ADGD-24-08-24OG ADGD-30-12-30OG ADGD-36-16-36OG ADGD-42-20-42OG |
M12x1.5 M14x1.5 M16x1.5 M18x1.5 M22x1.5 M26x1.5 M30x2 M36x2 M45x2 M14x1.5 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M30x2 M36x2 M42x2 |
G1/8″x28 G1/4″x19 G1/4″x19 G3/8″x19 G1/2″x14 G1/2″x14 G3/4″x14 G1″x11 G1.1/4″x11 G1/4″x19 G1/4″x19 G3/8″x19 G3/8″x19 G1/2″x14 G1/2″x14 G3/4″x14 G1″x11 G1.1/4″x11 |
6 8 10 12 15 18 22 28 35 6 8 10 12 14 16 20 25 30 |
6 8 10 12 15 18 22 28 35 6 8 10 12 14 16 20 25 30 |
21 23 24 26 28 31.5 35.5 38.5 48.5 22 24 25.5 28.5 31 33.5 38.5 42 49.5 |
14 16 17 19 21 24 28 31 38 15 17 18 22 23 25 28 30 36 |
26 32 34 37 43 49 49 59 65 32 36 38 38 43 49 51 58 64 |
29 31 32 34 36 40 44 49 59 30 32 34 38 41 43 49 54 62 |
14 14 19 19 22 27 30 36 46 14 19 19 22 22 27 30 36 46 |
14 17 19 22 27 32 36 41 |50 17 19 22 24 27 30 36 46 50 |
14 19 19 22 27 27 32 41 50 19 19 22 22 27 27 36 41 50 |
44 68 85 125 205 266 400 637 995 72 87 127 145 216 234 413 673 1013 |
500 500 500 400 400 400 250 250 250 800 |800 800 630 630 630 420 420 450 |
L L L L L L L L L S S S S S S S S S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necesAry to insert suffix“RN”after our ,for example ADGD-18-06-180G RN: with retainer ring please insert suffix“DQ”after our ,for example ADGD-18-06-180GDQ
