Metric Male Adjustable Stud Ends ISO 6149 Branch Tee

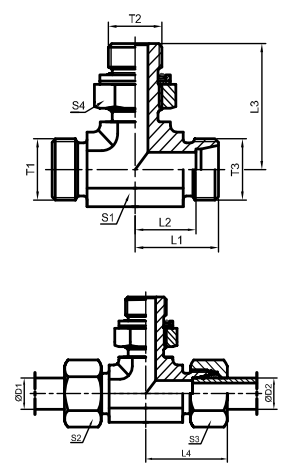

| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | ||||||||
| T1/T3 | T2 | D1 | D2 | L1 | L2 | L3 | L4 | S1 | S2 S3 | S4 | g/pc | （bar) | ||
| ACHC-12-10-120G ACHC_14-12-14OG ACHC-16-14-160G ACHC-18-16-18OG ACHC_22-18-22OG ACHC-26-22-26OG ACHC-30-27-30OG ACHC-36-33-36OG ADHD-14-12-140G ADHD-16-14-16OG ADHD-18-16-18OG ADHD-20-18-20OG ADHD-24-22-240G ADHD-30-27-30OG ADHD-36-33-36OG ADHD-42OG |
M12x1.5 M14x1.5 M16x1.5 M18x1.5 M22x1.5 M26x1.5 M30x2 M36x2 M14x1.5 M16x1.5 M18x1.5 M20x1.5 M24x1.5 M30x2 M36x2 M42x2 |
M10x1 M12x1.5 M14x1.5 M16x1.5 M18x1.5 M22x1.5 M27x2 M33x2 M12x1.5 M14x1.5 M16x1.5 M18x1.5 M22x1.5 M27x2 M33x2 M42x2 |
6 8 10 12 15 18 22 28 6 8 |10 12 16 20 25 30 |
6 8 10 12 15 18 22 28 6 8 10 12 16 20 25 30 |
21 23 24 26 28 31.5 35.5 38.5 22 24 25.5 28.5 33.5 38.5 42 49.5 |
14 16 17 19 21 24 28 31 15 17 18 21 25 28 30 36 |
27 32 34 35 41 44 49 52 32 36 38 43 49 55 60 68 |
29 31 32 34 36 40 44 47 30 32 34 38 43 49 54 62 |
14 14 19 19 22 27 30 36 14 19 19 22 27 30 36 46 |
14 17 19 22 27 32 36 41 17 19 22 24 30 36 46 50 |
14 17 19 22 24 27 32 41 17 19 22 24 27 32 41 50 |
45 68 89 121 177 263 396 621 71 91 124 160 213 409 657 1006 |
315 315 315 |250 250 250 160 160 400 400 400 400 400 400 350 250 |
L L L L L L L L S S S S S S S S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necesAry to insert suffix“RN”after our ,for example ADHD-16-14-16oG RN: with retainer ring please insert suffix”DQ”after our ,for example ADHD-16-14-16OGDQ
