UN,UNF Thread Stud Ends With O-Ring Sealing ISO 11926
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | |||||||

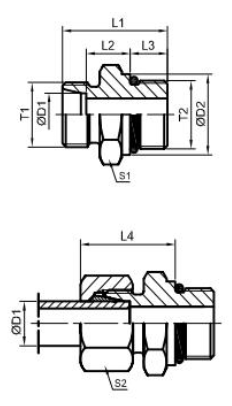

| T1 | TN | D1 | D2 | L1 | L2 | L3 | L4 | 1 | S2 | g/pc | (bar) | ||
| 1CO-14-04 1CO-16-04 1CO-18-06 1C0-18-08 1CO-18-10 1CO-22-08 1CO-22-10 1CO-26-08 1CO-26-10 1CO-30-10 1CO-30-12 1CO-30-16 1CO-36-12 1CO-36-16 1CO-45-16 1CO-45-20 1CO-52-20 1DO-16-04 1DO-18-06 1DO-20-06 1DO-20-08 1DO-24-08 1DO-24-10 1DO-30-08 1DO-30-10 1DO-30-12 1DO-36-12 1DO-36-16 1DO-42-16 1DO-42-20 1DO-52-20 |
M14x1.5 M16x1.5 M18x1.5 M18x1.5 M18x1.5 M22x1.5 M22x1.5 M26x1.5 M26x1.5 M30x2 M30x2 M30x2 M36x2 M36x2 M45x2 M45x2 M52x2 M16x1.5 M18x1.5 M20x1.5 M20x1.5 M24x1.5 M24x1.5 M30x2 M30x2 M30x2 M36x2 M36x2 M42x2 M42x2 M52x2 |
7/16″x20UNF 7/16″x20UNF 9/16″x18UNF 3/4″x16UNF 7/8″x14UNF 3/4″x16UNF 7/8″x14UNF 3/4″x16UNF 7/8″x14UNF 7/8″x14UNF 1.1/16’x12UNF 1.5/16’x12UNF 1.1/16″x12UNF 1.5/16’x12UNF 1.5/16’x12UNF 1.5/8″x12UNF 1.5/8″x12UNF 7/16″x20UNF 9/16″x18UNF 9/16″x18UNF 3/4″x16UNF 3/4″x16UNF 7/8″x14UNF 3/4″x16UNF 7/8″x14UNF 1.1/16″x12UNF 1.1/16″x12UNF 1.5/16*x12UNF 1.5/16″x12UNF 1.5/8″x12UNF 1.5/8″x12UNF |
8 10 12 12 12 15 15 18 18 22 22 22 28 28 35 35 42 8 10 12 12 16 16 20 20 20 25 25 30 30 38 |
— — — — — — — 23.9 — 26.9 — — 33.3 — 39.6 — 47.7 — — 19 — — — 23.9 26.9 — 33.3 — 39.6 — 47.7 |
26 27 28 31 34 32 35 33 35 37 39 40 40 40 43 43 45 31 32 32 36 35 40 42 44 46 50 50 52 52 57 |
10 11 11 13 14.3 14 15.3 14.5 14.8 16.8 16.5 17.5 17.5 17.5 17.5 17.5 19 13 12.5 12.5 14.5 12.5 15.5 17.5 17.5 17 19.5 19.5 20 20 22.5 |
9 9 10 11 12.7 11 12.7 11 12.7 12.7 15 15 15 15 15 15 15 11 12 12 14 14 16 14 16 18.5 18.5 18.5 18.5 18.5 18.5 |
25 26 26 28 29 29 30 31 31 33 33 34 34 34 39 39 42 30 31 31 34 34 37 42 42 42 47 47 50 50 57 |
17 17 19 24 27 24 27 27 27 32 32 41 41 41 46 50 55 17 19 22 24 24 27 32 32 32 36 41 46 50 55 |
17 19 22 22 22 27 27 32 32 36 36 36 41 41 50 50 60 19 22 24 24 30 30 36 36 36 46 46 50 50 60 |
21 23 32 52 77 57 81 68 72 94 103 163 152 163 222 257 339 33 42 50 73 90 95 132 141 163 206 258 327 422 554 |
315 315 315 315 315 315 315 315 315 160 160 160 160 160 160 160 160 630 630 630 630 400 400 400 400 400 400 400 400 400 315 |
L L L L L L L L L L L L L L L L L S S S S S S S S S S S S S S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut.it is necessary to insert suffix”RN”after our ,for example 1CO-30-12/RN.
