NPT Male

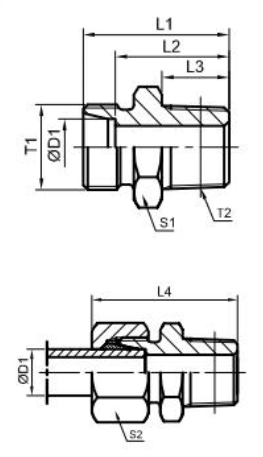

| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | ||||||
| T1 | T2 | D1 | L1 | L2 | L3 | L4 | 1 | S2 | g/pc | (bar) | ||
| 1CN-12-02 1CN-12-04 1CN-12-06 1CN-12-08 1CN-14-02 1CN-14-04 1CN-14-06 1CN-14-08 1CN-16-02 1CN-16-04 1CN-16-06 1CN-16-08 1CN-16-12 1CN-18-02 1CN-18-04 1CN-18-06 1CN-18-08 1CN-22-06 1CN-22-08 1CN-22-12 1CN-22-16 1CN-26-06 1CN-26-08 1CN-26-12 1CN-26-16 |
M12X1.5 M12X1.5 M12X1.5 M12X1.5 M14X1.5 M14X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M16X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M18x1.5 M18X1.5 M22X1.5 M22X1.5 M22X1.5 M22X1.5 M26X1.5 M26X1.5 M26X1.5 M26X1.5 |
NPT 1/8″x27 NPT 1/4″x18 NPT 3/8″x18 NPT 1/2″x14 NPT1/8″x27 NPT 1/4″x18 NPT3/8″x18 NPT 1/2″x14 NPT 1/8″x27 NPT 1/4″x18 NPT3/8″x18 NPT 1/2″x14 NPT 3/4″x14 NPT 1/8″x27 NPT1/4″x18 NPT3/8″x18 NPT 1/2″x14 NPT 3/8″x18 NPT 1/2″x14 NPT 3/4″x14 NPT 1″x11.5 NPT 3/8″x18 NPT 1/2″x14 NPT3/4″x14 NPT1″x11.5 |
6 6 6 6 8 8 8 8 10 10 10 10 10 12 12 12 12 15 15 15 15 18 18 18 18 |
24 30 30 36 25 30 30 36 25 31 32 37 38 26 32 32 37 33 38 39 45 34 39 39 45 |
17 23 23 29 18 23 23 29 18 24 25 30 31 19 25 25 30 26 31 32 38 26.5 31.5 31.5 37.5 |
10 14.5 14.5 19.5 10 14.5 14.5 19.5 10 14.5 14.5 19.5 19.5 10 14.5 14.5 19.5 14.5 19.5 19.5 24.5 14.5 19.5 19.5 24.5 |
32 38 38 44 33 38 38 44 33 39 40 45 46 34 40 40 45 41 46 47 53 43 48 48 54 |
12 17 19 22 14 17 19 22 17 17 19 22 30 19 19 19 22 24 24 30 36 27 27 30 36 |
14 14 14 14 17 17 17 17 19 19 19 19 19 22 22 22 22 27 27 27 27 32 32 32 32 |
12 27 32 53 16 25 34 54 19 25 40 54 93 52 31 37 62 53 63 112 158 69 79 104 159 |
315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 |
L L L L L L L L L L L L L L L L L L L L L L L L L |
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | ||||||
| T1 | T2 | D1 | L1 | L2 | L3 | L4 | 1 | S2 | g/pc | (bar) | ||
| 1CN-30-06 1CN-30-08 1CN-30-12 1CN-30-16 1CN-36-12 1CN-36-16 1CN-36-20 1CN-45-16 1CN-45-20 1CN-52-20 1CN-52-24 1DN-14-02 1DN-14-04 1DN-14-06 1DN-14-08 1DN-16-04 1DN-16-06 1DN-16-08 1DN-18-04 1DN-18-06 1DN-18-08 1DN-18-12 1DN-20-04 1DN-20-06 1DN-20-08 1DN-20-12 1DN-22-06 1DN-22-08 1DN-22-12 1DN-22-16 1DN-24-06 1DN-24-08 1DN-24-12 1DN-24-16 1DN-30-08 1DN-30-12 1DN-30-16 1DN-36-12 1DN-36-16 1DN-36-20 1DN-36-24 1DN-42-12 1DN-42-16 1DN-42-20 1DN-42-24 1DN-52-16 1DN-52-20 1DN-52-24 |
M30x2 M30x2 M30x2 M30x2 M36x2 M36x2 M36x2 M45x2 M45x2 M52x2 M52x2 M14x1.5 M14x1.5 M14x1.5 M14x1.5 M16x1.5 M16x1.5 M16x1.5 M18x1.5 M18x1.5 M18x1.5 M18x1.5 M20x1.5 M20x1.5 M20x1.5 M20x1.5 M22x1.5 M22x1.5 M22x1.5 M22x1.5 M24x1.5 M24x1.5 M24x1.5 M24x1.5 M30x2 M30x2 M30x2 M36x2 M36x2 M36x2 M36x2 M42x2 M42x2 M42x2 M42x2 M52x2 M52x2 M52x2 |
NPT3/8″x18 NPT 1/2″x14 NPT3/4″x14 NPT1″x11.5 NPT 3/4″x14 NPT 1″x11.5 NPT1.1/4″x11.5 NPT1″x11.5 NPT1.1/4″x11.5 NPT 1.1/4″x11.5 NPT 1.1/2″x11.5 NPT 1/8*x27 NPT1/4×18 NPT 3/8″x18 NPT 1/2″x14 NPT 1/4″x18 NPT3/8″x18 NPT 1/2″x14 NPT 1/4″x18 NPT3/8″x18 NPT 1/2″x14 NPT 3/4″x14 NPT1/4*x18 NPT3/8″x18 NPT 1/2″x14 NPT3/4″x14 NPT3/8″x18 NPT 1/2″x14 NPT 3/4″x14 NPT 1″x11.5 NPT 3/8″x18 NPT 1/2″x14 NPT 3/4″x14 NPT1″x11.5 NPT1/2″x14 NPT 3/4″x14 NPT1″x11.5 NPT 3/4″x14 NPT1″x11.5 NPT 1.1/4″x11.5 NPT1.1/2″x11.5 NPT3/4″x14 NPT1″x11.5 NPT 1.1/4″x11.5 NPT1.1/2″x11.5 NPT1″x11.5 NPT 1.1/4″x11.5 NPT 1.1/2″x11.5 |
22 22 22 22 28 28 28 35 35 42 42 6 6 6 6 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16 20 20 20 25 25 25 25 30 30 30 30 38 38 38 |
36.5 41 41 47 42 47 49 50 51 53 53 28 35 33 42 35 35 42 35 35 42 44 37 37 42 44 39 44 46 51 39 48 46 53 48 48 55 52 57 58 61 54 59 60 60 64 65 65 |
29 33.5 33.5 39.5 34.5 39.5 41.5 39.5 40.5 42 42 21 28 26 35 28 28 35 27.5 27.5 34.5 36.5 29.5 29.5 34.5 36.5 31 36 38 43 30.5 39.5 37.5 44.5 37.5 37.5 44.5 40 45 46 49 40.5 45.5 46.5 46.5 48 49 49 |
14.5 19.5 19.5 24.5 19.5 24.5 25 24.5 25 25 26 10 14.5 14.5 19.5 14.5 14.5 19.5 14.5 14.5 19.5 19.5 14.5 14.5 19.5 19.5 14.5 19.5 19.5 24.5 14.5 19.5 19.5 24.5 19.5 19.5 24.5 19.5 24.5 25 26 19.5 24.5 25 26 24.5 25 26 |
45 50 50 56 51 56 58 61 62 65 65 36 43 41 50 43 43 50 44 44 51 53 46 46 51 53 49 54 56 61 49 58 56 61 59 59 66 64 69 70 73 67 72 73 73 79 80 80 |
32 32 32 36 41 41 46 46 46 55 55 14 17 19 22 17 19 22 19 19 22 30 22 22 22 30 24 24 30 36 27 27 30 36 32 32 36 41 41 46 50 46 46 46 50 55 55 55 |
36 36 36 36 41 41 41 50 50 60 60 17 17 17 17 19 19 19 22 22 22 22 24 24 24 24 27 27 27 27 30 30 30 30 36 36 36 46 46 46 46 50 50 50 50 60 60 60 |
91 96 108 174 157 197 266 280 285 382 377 21 37 40 71 38 46 73 45 49 73 125 57 62 83 126 77 89 130 180 84 97 130 178 144 149 243 240 278 396 469 307 343 397 440 510 535 571 |
315 160 160 160 160 160 160 160 160 160 160 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 315 315 315 |
L L L L L L L L L L L L L S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S |
Note:In case if you are interested to order the adapter in complele set with cutting ring and nut,it is necessary to insert suffx”RN”after our ,for example 1CN-30-12SP/ RN.
