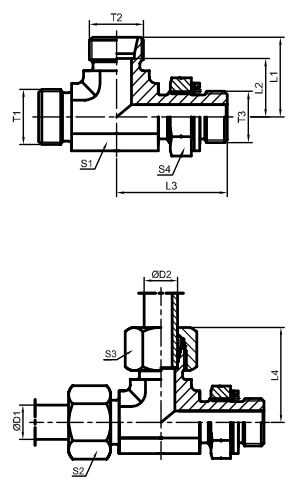

UN,UNF Thread Adjustable Stud Ends With O-Ring Sealing Run Tee
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | ||||||||
| T1/T2 | T3 | D1 | D2 | L1 | L2 | L3 | L4 | S1 | S2/S3 | S4 | g/pc | bar) | ||
| ACCO-12-12-04OG ACCO-14-14-06OG ACCO-16-16-06OG ACCO-18-18-08OG ACCO-22-22-10OG ACCO-26-26-12OG ACCO-30-30-120G ACCO-36-36-160G ACCO-45-45-20OG ADDO-14-14-04OG ADDO-16-16-06OG ADDO-18-18-06OG ADDO-20-20-08OG ADDO-22-22-10OG ADDO-24-24-10OG ADDO-30-30-12OG ADDO-36-36-160G ADDO-42-42-20OG |
M12x1.5 M14x1.5 M16x1.5 M18x1.5 M22x1.5 M26x1.5 M30x2 M36x2 M45x2 M14x1.5 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M30x2 M36x2 M42x2 |
7/16″x20 9/16″x18 9/16″x18 3/4″x16 7/8″x14 1.1/16″x12 1.1/16″x12 1.5/16″x12 1.5/8″x12 7/16″x20 9/16″x18 9/16″x18 3/4″x16 7/8″x14 7/8″x14 1.1/16″x12 1.5/16″x12 1.5/8″x12 |
6 8 10 12 15 18 22 28 35 6 8 10 12 14 16 20 25 30 |
6 8 10 12 15 18 22 28 35 6 8 10 12 14 16 20 25 30 |
21 22.5 24 26 28 31.5 35.5 38.5 48.5 22 24 25.5 28.5 31 33.5 38.5 42 49.5 |
14 15.5 17 19 21 24 28 31 38 15 17 18 21 23 25 28 30 36 |
29 31.8 34 38 43 49 53 59 63 32 37 38 44 44 50 56 69 69 |
29 30.5 32 34 36 40 44 47 59 30 32 34 38 41 43 49 56.8 62 |
14 14 19 19 22 30 30 36 46 14 19 19 22 22 27 30 36 46 |
14 17 19 22 27 32 36 41 50 17 19 22 24 27 30 36 46 50 |
14 17 17 22 27 32 32 41 50 14 17 17 22 27 27 32 41 50 |
53 72 90 142 212 333 410 642 1047 66 92 110 167 220 263 423 678 1007 |
315 250 250 250 200 200 200 160 125 400 400 400 400 400 400 400 315 250 |
L L L L L L L L L S S S S S S S S S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necesAry to insert suffix”RN”after our ,for example ACCO-30-30-120G/RN.
