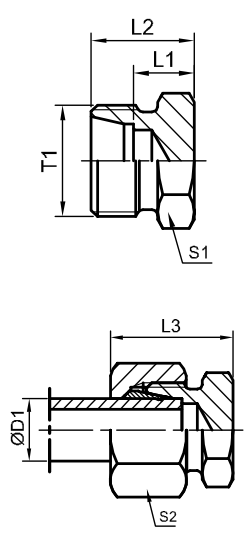

Plug
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | |||||
| T1 | D1 | L1 | L2 | L3 | S1 | S2 | g/pcs | (bar) | |||
| 4C-12 4C-14 4C~16 4C-18 4C-22 4C-26 4C-30 4C-36 4C-45 4C-52 4D-14 4D-16 4D-18 4D-20 4D-22 4D-24 4D-30 4D-36 4D-42 4D-52 |
M12x1.5 M14x1.5 M16x1.5 M18x1.5 M22x1.5 M26x1.5 M30x2 M36x2 M45x2 M52x2 M14x1.5 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M30x2 M36x2 M42x2 M52x2 |
6 8 10 12 15 18 22 28 35 42 6 8 10 12 14 16 20 25 30 38 |
7 8 9 10 11 11.5 13.5 14.5 14.5 16 11 13 14.5 14.5 16 15.5 17.5 20 20.5 23 |
14 15 16 17 18 19 21 22 25 27 18 20 20 22 24 24 28 32 34 39 |
22 23 24 25 26 28 30 31 36 39 26 28 29 31 34 34 39 44 47 54 |
12 14 17 19 24 27 32 41 46 55 14 17 19 22 24 27 32 41 46 55 |
14 17 19 22 27 32 36 41 50 60 17 19 22 24 27 30 36 46 50 60 |
8 13 17 24 41 56 84 138 203 318 17 28 33 50 62 75 125 229 310 805 |
500 500 500 400 400 400 250 250 250 250 800 800 800 630 630 630 420 420 420 420 |
L L L L L L L L L L S S S S S S S S S S |
|
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffx”RN”after our ,for example 4C-30 RN.
