Cross Fittings

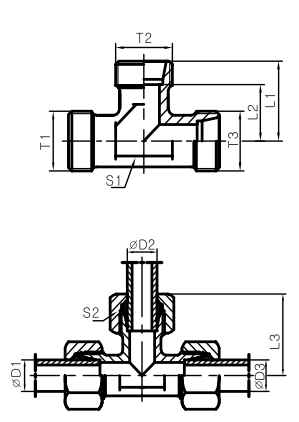

| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | ||||
| T1/T2/T3/T4 | D1/D2/D3/D4 | L1 | L2 | L3 | S1 | S2 | g/pc | (bar) | ||
| XC-12 | M12 1.5 | 6 | 19 | 12 | 27 | 12 | 14 | 35 | 315 | L |
| XC-14 | M14 1.5 | 8 | 21 | 14 | 29 | 12 | 17 | 40 | 315 | L |
| XC-16 | M16x1.5 | 10 | 22 | 15 | 30 | 14 | 19 | 52 | 315 | L |
| XC-18 | M18 1.5 | 12 | 24 | 17 | 32 | 17 | 22 | 69 | 315 | L |
| XC-22 | M22 1.5 | 15 | 28 | 21 | 36 | 19 | 27 | 130 | 315 | L |
| XC-26 | M26 1.5 | 18 | 31 | 23.5 | 40 | 24 | 32 | 188 | 315 | L |
| XC-30 | M30 2 | 22 | 35 | 27.5 | 44 | 27 | 36 | 251 | 160 | L |
| XC-36 | M36 2 | 28 | 38 | 30.5 | 47 | 36 | 41 | 392 | 160 | L |
| XC-45 | M45 2 | 35 | 45 | 34.5 | 56 | 41 | 50 | 618 | 160 | L |
| XC-52 | M52 2 | 42 | 51 | 40 | 63 | 50 | 60 | 905 | 160 | L |
| XD-14 | M14x1.5 | 6 | 23 | 16 | 31 | 12 | 17 | 58 | 630 | S |
| XD-16 | M16x1.5 | 8 | 24 | 17 | 32 | 14 | 19 | 82 | 630 | S |
| XD-18 | M18 1.5 | 10 | 25 | 17.5 | 34 | 17 | 22 | 97 | 630 | S |
| XD-20 | M20x1.5 | 12 | 29 | 21.5 | 38 | 17 | 24 | 146 | 630 | S |
| XD-22 | M22 1.5 | 14 | 30 | 22 | 40 | 19 | 27 | 176 | 400 | S |
| XD-24 | M24x1.5 | 16 | 33 | 24.5 | 43 | 24 | 30 | 220 | 400 | S |
| XD-30 | M30 2 | 20 | 37 | 26.5 | 48 | 27 | 36 | 339 | 315 | S |
| XD-36 | M36 2 | 25 | 42 | 30 | 54 | 36 | 46 | 576 | 315 | S |
| XD-42 | M42 2 | 30 | 49 | 35.5 | 62 | 41 | 50 | 843 | 315 | S |
| XD-52 | M52 2 | 38 | 57 | 41 | 72 | 50 | 60 | 1350 | 315 | S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix”RN”after our .for example XC-30/RN
