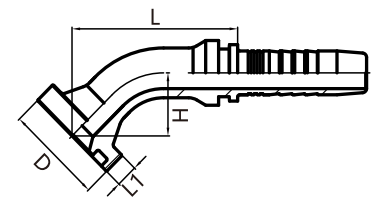

45° SAE Flange 3000 PS161 Type
| Code PART NO. |
Flange Model | Hose Bore | Dimensions | ||||
| Flange Size | Nominal Inner Diameter DN | Dash Number | L | H | D | L1 | |
| 87641-08-08 87641-12-10 87641-12-12 87641-16-12 87641-16-16 87641-16-20 87641-20-16 87641-20-20 87641-24-20 87641-24-24 87641-32-24 87641-32-32 |
1/2″ 3/4″ 3/4″ 1″ 1″ 1″ 1.1/4″ 1.1/4″ 1.1/2″ 1.1/2″ 2″ 2″ |
13 16 19 19 25 32 25 32 32 38 38 51 |
8 10 12 12 16 20 16 20 20 24 24 32 |
50.3 65.2 68.7 74.7 81.4 95.8 87.4 98.8 104.8 115.1 127.1 141 |
19 26 26 32 32 35 38 38 44 44 56 56 |
31.7 41.3 41.3 47.6 47.6 47.6 54 54 63.5 63.5 79.4 79.4 |
7.75 8.76 8.76 9.53 9.53 9.53 10.29 10.29 12.57 12.57 12.57 12.57 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 87642-XX-XX.
