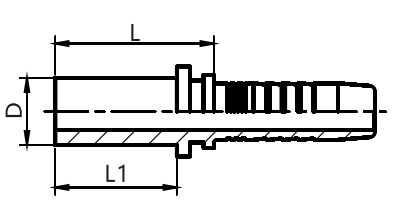

Card sleeve straight pipe
| Code PART NO. |
Pipe outer diameter | Hose bore | Dimensions | Remarks | |||
| TUBE O.D | Nominal inner diameter DN | Dash number | L | D | L1 | NOTE | |
| 50011-06L-04 50011-10L-05 50011-10L-06 50011-12L-06 50011-12L-08 50011-15-08 50011-18-10 50011-22-10 50011-22-12 50011-22-16 50011-28-16 50011-35-20 50011-42-24 |
6 10 10 12 12 15 18 22 22 22 28 35 42 |
6 8 10 10 13 13 16 16 19 25 25 32 38 |
4 5 6 6 8 8 10 10 12 16 16 20 24 |
29.5 31 33.5 32 32.5 35.5 35 38 38 39 41 56 62 |
6 10 10 12 12 15 18 22 22 22 28 35 42 |
22 23 23 25 25 25 26 28 28 28 30 36 40 |
Light series (L) |
| 50011-08S-04 50011-08S-05 50011-08S-06 50011-10S-04 50011-12S-04 50011-12S-05 50011-14-05 50011-14-06 50011-14-08 50011-16-08 50011-16-10 50011-20-10 50011-20-12 50011-25-12 50011-25-16 50011-30-16 50011-30-20 50011-38-16 50011-38-20 |
8 8 8 10 12 12 14 14 14 16 16 20 20 25 25 30 30 38 38 |
6 8 10 6 6 8 8 10 13 13 16 16 19 19 25 25 32 25 32 |
4 5 6 4 4 5 5 6 8 8 10 10 12 12 16 16 20 16 20 |
31 31 31 35 33 33 39.5 39.5 40 41 42 52.5 52.5 56 57 63 64 69 70 |
8 8 8 10 12 12 14 14 14 16 16 20 20 25 25 30 30 38 38 |
24 24 24 23 25 25 29 29 29 30 30 36 36 40 40 44 44 50 50 |
Heavy series (S) |
