Product Description

NPT Female

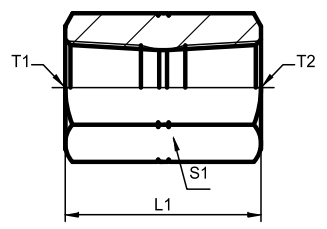

PART NO.	THREAD		DIMENSIONS		WEIGHT	WORKING PRESSURE
	T1	T2	L1	S1	g
7N-02 7N-02-04 7N-02-06 7N-04 7N-04-06 7N-04-08 7N-06 7N-06-08 7N-06-12 7N-08 7N-08-12 7N-12 7N-12-16 7N-16 7N-20 7N-24 7N-32	NPT1/8″X27 NPT1/8X27 NPT1/8X27 NPT1/4″X18 NPT1/4″X18 NPT1/4″X18 NPT3/8″ X18 NPT3/8″X18 NPT3/8″X18 NPT1/2*X14 NPT1/2″X14 NPT3/4″X14 NPT3/4″ X14 NPT1″X11.5 NPT1.1/4″X11.5 NPT1.1/2″X11.5 NP12″ X11.5	NPT1/8″X27 NPT1/4″X18 NPT3/8″X18 NPT1/4″X18 NPT3/8″ X18 NPT1/2″ X14 NPT3/8″X18 NPT1/2″X14 NPT3/4″ X14 NPT1/2″ X14 NPT3/4″X14 NPT3/4″ X14 NPT1″X11.5 NPT1″X11.5 NPT1.1/4″X11.5 NPT1.1/2″X11.5 NP12″ X11.5	19 27 30 29 31 35 29 38 40 38 43 39 45.5 48 49 49 50	17 19 22 19 22 30 22 30 36 30 36 36 41 41 50 60 70	28 38 55 33 49 129 37 128 201 110 197 148 227 183 239 409 422	34.5 27.5 21 21 21 21 21 17 17 21 17 17 14 14 8 7 —
