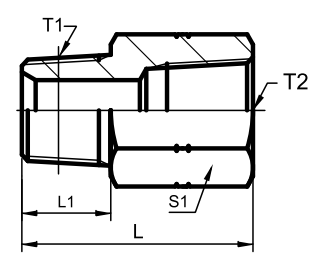

NPT Male / NPT Female
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | |||
| T1 | T2 | L | L1 | S1 | g | ||
| 5N-02 5N-04-02 5N-04 5N-04-06 5N-06-04 5N-06 5N-06-08 5N-08-06 5N-08 5N-08-12 5N-12-08 5N-12 5N-16-12 5N-16 5N-16-20 5N-20-16 5N-20 5N-20-24 5N-24-20 5N-24 5N-24-32 5N-32-24 5N-32 |
NPT1/8″X27 NPT1/4″X18 NPT1/4″X18 NPT1/4″X18 NPT3/8″X18 NPT3/8″X18 NPT3/8″X18 NPT1/2″X14 NPT1/2″X14 NPT1/2″X14 NPT3/4″X14 NPT3/4″X14 NPT1″X11.5 NPT1*X11.5 NPT1″X11.5 NPT1.1/4″X11.5 NPT1.1/4″X11.5 NPT1.1/4″X11.5 NPT1.1/2″X11.5 NPT1.1/2″X11.5 NPT1.1/2″X11.5 NPT2″X11.5 NPT2*X11.5 |
NPT1/8″X27 NPT1/8″X27 NPT1/4″X18 NPT3/8″X18 NPT1/4″X18 NPT3/8″X18 NPT1/2″X14 NPT3/8″X18 NPT1/2″X14 NPT3/4″X14 NPT1/2″X14 NPT3/4″X14 NPT3/4″X14 NPT1″X11.5 NPT1.1/4″X11.5 NPT1″X11.5 NPT1.1/4″X11.5 NPT1.1/2″X11.5 NPT1.1/4″X11.5 NPT1.1/2″X11.5 NPT2″X11.5 NPT1.1/2″X11.5 NPT2″X11.5 |
26.4 22 35.3 37 22 37 43 28.5 47.5 49 30 49 34.5 60.5 62.5 37.5 63.5 63.5 40 64.5 67 44.5 67.6 |
10.5 15 15 15 16 16 16 19.5 19.5 19.5 19.5 25.5 25 25 25.5 25.5 25.5 25.5 26 5 26.5 26.5 27.5 27.5 |
17 17 19 24 19 24 30 24 30 36 27 36 36 41 50 46 50 60 50 65 70 65 70 |
25 36 38 58 28 63 112 54 124 160 72 165 139 269 351 236 396 559 311 727 673 605 728 |
34.5 27.5 21 21 21 21 21 21 17 17 17 14 14 8 8 8 7 7 7 7 7 |
