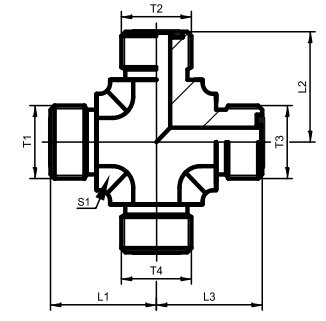

ORFS Male O-Ring Cross Fittings
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | ||||||
| T1 | T2 | T3 | T4 | L1 | L2 | L3 | S1 | g | ||
| XF-04 XF-06 XF-08 XF-10 XF-12 XF-16 XF-20 XF-24 |
9/16″X18 11/16″X16 13/16″X16 1″X14 1.3/16″ X12 1.7/16″ X12 1.11/16″ X12 2″X12 |
9/16″X18 11/16″X16 13/16″ X16 1″X14 1.3/16″X12 1.7/16″X12 1.11/16″X12 2″X12 |
9/16″X18 11/16″X16 13/16″ X16 1″X14 1.3/16″X12 1.7/16″ X12 1.11/16″X12 2″X12 |
9/16″ X18 11/16″ X16 13/16″ X16 1″X14 1.3/16″ X12 1.7/16″X12 1.11/16″X12 2″X12 |
21.5 25 28 33.5 37.5 41.5 44.5 49 |
21.5 25 28 33.5 37.5 41.5 44.5 49 |
21.5 25 28 33.5 37.5 41.5 44.5 49 |
14 19 19 27 30 36 41 50 |
67 112 156 280 427 645 860 1270 |
63 63 63 40 40 40 25 25 |
