Product Description

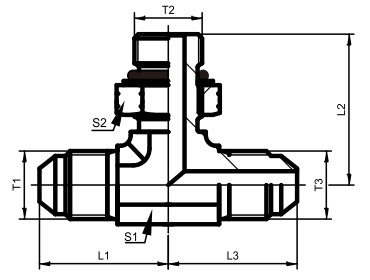

JIC Male 74° Cone / SAE O-Ring Boss L-Series ISO 11926-3 Branch Tee

PART NO.	THREAD			DIMENSIONS					WEIGHT	WORKING PRESSURE
	T1	T2	T3	L1	L2	L3	S1	S2	g
AJOJ-04OG AJOJ-050G AJOJ-060G AJOJ-08OG AJOJ-100G AJOJ-120G AJOJ-160G AJOJ-200G AJOJ-240G	7/16″X20 1/2″X20 9/16″X18 3/4″X16 7/6″X14 1.1/16″X12\| 1.5/16″X12 1.5/8″X12 1.7/8″X12	7/16″X20 1/2″X20 9/16″X18 3/4″X16 7/8″X14 1.1/16″X12 1.5/16″X12 1.5/8″X12 1.7/8″X12	7/16″X20 1/2″X20 9/16″X18 3/4″X16 7/8″X14 1.1/16″X12 15/16″X12 1.5/8″X12 1.7/8″X12	22.6 24.1 26.9 31.8 36.8 42.2 46 52.3 59.2	26.2 28.7 31.8 36.8 43.2 49.3 52.1 57.2 60.7	22.6 24.1 26.9 31.8 36.8 42.2 46 52.3 59.2	11 14 14 19 22 27 33 41 48	14 17 17 22 27 32 41 50 55	42 56 74 157 227 373 569 922 1236	31.5 31.5 31.5 31 24 24 20 16 14
