90° Elbow JIC Male 74° Cone / L-Series Flange ISO 6162-1

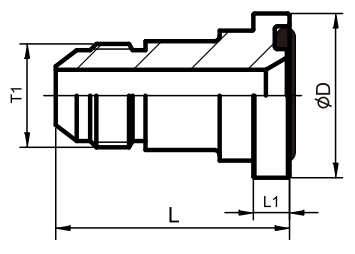

PART NO.	THREAD	FLANGE SIZE	DIMENSIONS					WEIGHT	WORKING PRESSURE
	T1		L1	L2	L3	D	1	g
1JFL9-08 1JFL9-08-12 1JFL9-10-08 1JFL9-10-12 1JFL9-12 1JFL9-12-16 1JFL9-16 1JFL9-16-12 1JFL9-16-20 1JFL9-20 1JFL9-20-24 1JFL9-24 1JFL9-24-32 1JFL9-32	3/4″X16 3/4″X16 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.5/16″X12 1.5/16″X12 1.5/16*X12 1.5/8″X12 1.5/8″X12 1.7/8″X12 1.7/8″X12 2.1/2″X12	1/2″ 3/4” 1/2″ 3/4″ 3/4″ 1″ 1″ 3/4″ 1.1/4″ 1.1/4″ 1.1/2″ 1.1/2″ 2″ 2″	32.5 38 37.5 41 44.5 48 49 49 54 55.5 60 62.5 74.5 80	44 54.1 44 54.1 54.1 60.2 60.2 54.1 66.5 66.5 79.3 79.3 108 108	6.73 6.73 6.73 6.73 6.73 8 8 6.73 8 8 8 8 9.53 9.53	30.2 38.1 30.2 38.1 38.1 44.4 44.4 38.1 50.8 50.8 60.3 60.3 71.4 71.4	24 30 24 30 30 33 33 30 41 41 50 50 60 60	167 279 182 292 322 410 450 421 597 666 955 1015 1675 1978	31 31 24 24 24 24 21 21 20 17 17 14 14 10.5
