Weld Fittings
| PART NO. | THREAD | TUBE O·D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | |||

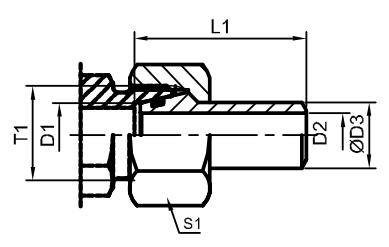

| T1 | D1 | L1 | D2 | D3 | S1 | g/pc | (bar) | ||
| 2WC-6X1.5 2WC-8X2.0 2WC-10X2.0 2WC-12X20 2WC-15X2.0 2WC-18X20 2WC-22X2.0 2WC-28X2.5 2WC-35X3.0 2WC-42X3.0 2WD-6X1.5 2WD-8X2.0 2WD-10X1.0 2WD-10X1.5 2WD-10X2.0 2WD-12X1.5 2WD-12X20 2WD-12X25 2WD-14X2.0 2WD-14X3.0 2WD-16X1.5 2WD-16X2.0 2WD-16X2.5 2WD-16X3.0 2WD-20X2.0 2WD-20X2.5 2WD-20X3.0 2WD-20X3.5 2WD-20X4,0 2WD-25X3.0 2WD-25X3.5 2WD-25X4.0 2WD-25X5.0 2WD-30X3.0 2WD-30X4.0 2WD-30X5.0 2WD-30X6.0 2WD-38X3.0 2WD-38X4.0 2WD-38X5.0 2WD-38X6.0 2WD-38X7.0 |
M12x1.5 M14x1.5 M16x1.5 M18x1.5 M22x1.5 M26x1.5 M30x2 M36x2 M45x2 M52x2 M14x1.5 M16x1.5 M18x1.5 M18x1.5 M18x1.5 M20x1.5 M20x1.5 M20x1.5 M22x1.5 M22x1.5 M24x1.5 M24x1.5 M24x1.5 M24x1.5 M30x2 M30x2 M30x2 M30x2 M30x2 M36x2 M36x2 M36x2 M36x2 M42x2 M42x2 M42x2 M42x2 M52x2 M52x2 M52x2 M52x2 M52x2 |
6 8 10 12 15 18 22 28 35 42 6 8 10 10 10 12 12 12 14 14 16 16 16 16 20 20 20 20 20 25 25 25 25 30 30 30 30 38 38 38 38 38 |
31.5 31.5 33.5 33.5 34.5 36.5 39.5 42.5 49.5 50 31.5 31.5 33.5 33.5 33.5 33.5 33.5 33.5 39.5 39.5 40.5 40.5 40.5 40.5 47 47 47 47 47 53 53 53 53 57 57 57 57 64 64 64 64 64 |
3 4 6 8 11 14 18 23 29 36 3 4 8 7 6 8 8 1 10 8 13 12 11 10 16 15 14 13 12 19 18 17 15 24 22 20 18 32 30 28 26 24 |
6 8 10 12 15 18 22 28 35 42 6 8 10 10 10 12 12 12 14 14 16 16 16 16 20 20 20 20 20 25 25 25 25 30 30 30 30 38 38 38 38 30 |
14 17 19 22 27 32 36 41 50 60 17 19 22 22 22 24 24 24 27 27 30 30 30 30 36 36 36 36 36 46 46 46 46 50 50 50 50 60 60 60 60 60 |
7 11 16 20 29 38 55 73 89 155 7 11 13 13 16 21 21 22 26 33 32 31 38 41 57 57 64 71 78 89 100 111 125 113 141 166 188 163 209 247 270 270 |
528 528 460 393 305 315 160 160 160 160 528 528 249 358 460 305 393 476 343 487 234 305 372 400 249 305 358 400 400 294 337 379 400 249 323 393 400 200 261 315 315 315 |
L L L L L L L L L L S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S |
